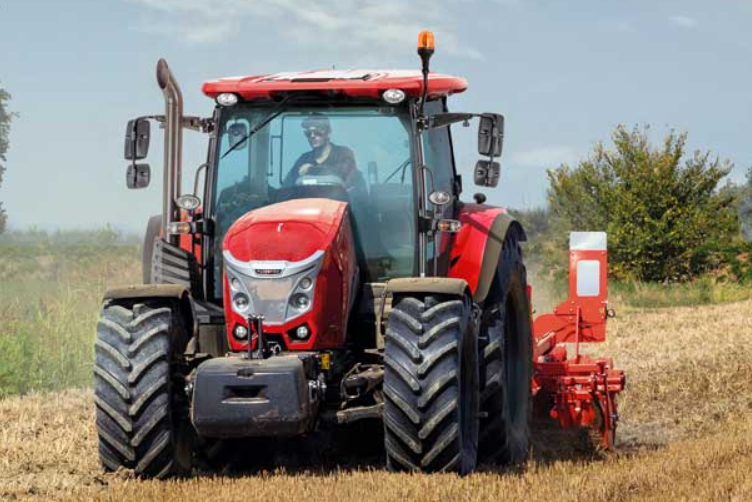

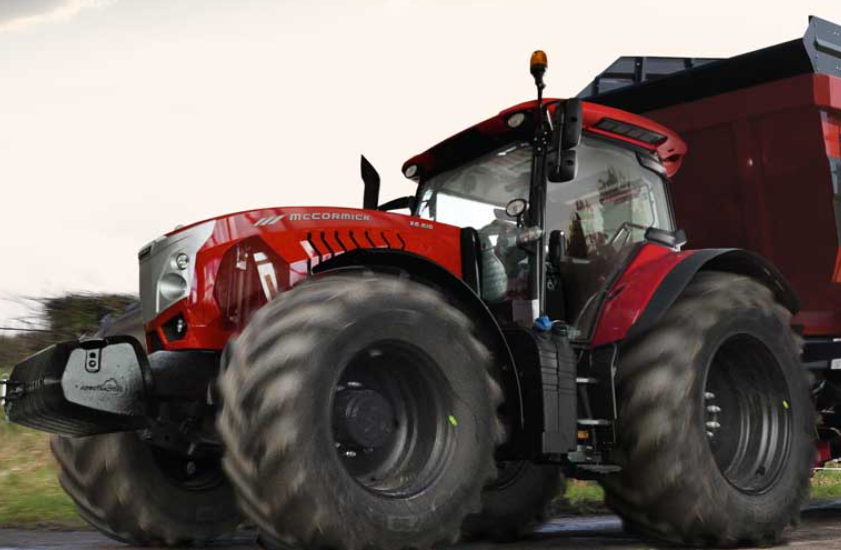

McCormick X6.616 XtraShift – High-Performance Utility Tractor for Field and Farm Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
X6.616 XtraShift |
|
Vehicle Category |
High-Performance Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Open-Field Operations, Haymaking, Farm Activities |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
6 cylinders, 6.7 L, FPT NEF 67, Structural Engine, Turbo Intercooler |
|
Maximum Horsepower |
155 HP (114 kW), 165 HP (122 kW) with EPM @ 1900 RPM |
|
Maximum Torque |
652 Nm, 676 Nm with EPM @ 1400 RPM |
|
Transmission Type |
XtraShift, 6 Powershift Speeds (HML), 3 Ranges, 54 FWD + 18 REV, 108 FWD + 36 REV with Creeper |
|
Transmission Control |
Powershift with Buttons, Manual Speed and Range Lever |
|
Minimum Speed |
1.6 km/h without Creeper, 0.35 km/h with Creeper |
|
Engine Speed at 40 km/h |
2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Braking System |
Automatic 4WD Engagement While Braking, Pneumatic Brake System with 2 Lines (Optional), Pneumatic Brake System with 2+1 Lines (Optional) |
|
Cab Suspension |
McCormick Mechanical Cab Suspension System |
Wheels & Tyres
|
Specification |
Details |
|
Maximum Tyres Front |
540/65R28 (IR 675 mm) |
|
Maximum Tyres Rear |
650/65R38 (IR 875 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V - Tier 4 Final, HI-eSCR2 |
|
Maintenance Interval |
500 hours |
|
Fuel Tank Capacity |
280 L (73.9 gal) |
|
AdBlue/DEF Tank Capacity |
38 L (10.0 gal) |
|
PTO Type |
Rear: 540/1000 RPM |
|
Hydraulic System |
CCLS Closed Center Load Sensing, 110 L/min for Hitch and Remotes, 38 L/min Dedicated Steering Pump, 3 Mechanical Remote Valves (Standard), 5 Mechanical Remote Valves, 80 L/min (Optional) |
|
Rear 3-Point Hitch |
Category III, Electronically-Controlled with Lower Link Draft Control, Position Control, Intermix, Float Position, 8400 kg, 100 mm Ram |
|
Wheelbase |
2880 mm |
|
Shipping Weight |
6700 kg (14771 lb) |
|
Gross Vehicle Weight |
11300 kg (24912 lb) |
|
Operator Platform |
McCormick Mechanical Cab Suspension System, Cluster with Monitor Controlled by Switches, Radio DAB MP3 with 2 Speakers, Bluetooth, Aux-In, Integrated Microphone, 8 Halogen Work Lights (4 Roof, 4 Bonnet, Standard), 12 Halogen Work Lights (4 Roof, 2 Pillars, 2 Rear Fenders, 4 Bonnet, Optional) |
|
Onboard Technology |
PSM Precision Steering Management, Rear ISOBus & EazySteer Ready (Optional), PSM with WAAS Full Kit (Optional), PSM with RTK NTRIP Full Kit (Optional), McCormick Fleet Management with 3 or 5 Years Full Subscription (Optional) |
