Specification

Details

Tractor Model

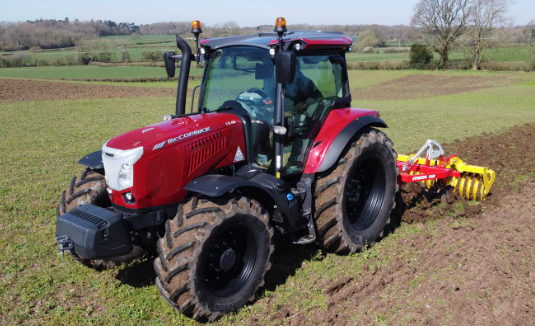

X6.415 P6-Drive

Vehicle Category

Heavy-Duty Utility Tractor

Fuel Type

Diesel

Application

Ploughing, Harrowing, Sowing, Cultivating, Harvesting, Material Handling

Specification

Details

Engine

4 cylinders, 4.5 L, FPT NEF 45, Turbo Intercooler, Electronically-Controlled High Pressure Common Rail System

Rated Horsepower

136 HP (100 kW), 143 HP (105 kW) with EPM @ 2200 RPM

Maximum Horsepower

144 HP (106 kW), 155 HP (114 kW) with EPM @ 1800 RPM

Maximum Torque

600 Nm, 630 Nm with EPM @ 1400 RPM

Torque Backup

38% (38% with EPM)

Transmission Type

P6-Drive, 6 Powershift Speeds, 4 Robotised Ranges, 24 FWD + 24 REV, 40 FWD + 40 REV with Creeper

Transmission Control

SmartPilot with Armrest (Standard), SmartPilot Plus with Armrest for Powershift, RPS, Engine Memo Switch, MyHMF, Rear PTO, Rear Hitch, Rear Remotes, Front Hitch, Front Loader (Optional), Electrohydraulic Forward/Reverse Shuttle with Modulation Control, APS Auto PowerShift

Minimum Speed

2.4 km/h without Creeper, 0.38 km/h with Creeper

Engine Speed at 40 km/h

1572 RPM

Engine Speed at 50 km/h

1965 RPM

Specification

Details

Front Axle

Rigid with Brakes (Standard), IFS Independent Front Wheel Suspension System with Brakes (Optional), Electrohydraulic 4WD, Fully Electrohydraulic Wet Clutch Differential Lock

Rear Axle

Flanged Type, Fully Electrohydraulic Wet Clutch Differential Lock

Braking System

Oil-Bath Disc Brakes (Front), 4 Oil-Cooled Discs (Rear), Pneumatic Brake System with 2 or 2+1 Lines as per MR, with or without Single-Line Hydraulic Brake, 2-Line Hydraulic Brake System as per MR (40 km/h only, Optional), Engine Brake (Standard)

Cab Suspension

High Vision 4-Post Cab Mounted on Silent Blocks, Mechanical Suspension (Optional)

Specification

Details

Maximum Tyres Front

520/60R28 VF (IR 650 mm)

Maximum Tyres Rear

650/60R38 VF (IR 825 mm)

Specification

Details

Emissions System

Stage V - Tier 4 Final, HI-eSCR2

Maintenance Interval

500 hours

Fuel Tank Capacity

220 L (58.1 gal)

AdBlue/DEF Tank Capacity

23 L (6.1 gal)

Cooling System Capacity

27 L (7.1 gal)

PTO Type

Rear: Electrohydraulic Multidisc Clutch with Modulated Engagement, 540/540E (Standard), 540/1000 or 540/540E/1000/1000E (Optional), 1-3/8” Shaft with 6 or 21 Splines, Front: Electrohydraulic Multidisc Clutch, 1000 RPM, 1-3/8” Shaft with 6 Splines (Clockwise) or 21 Splines (Counter-Clockwise, North American Version) (Optional)

PTO Speeds

Rear: 1944 RPM (540), 1581 RPM (540E), 1952 RPM (1000), 1586 RPM (1000E), Front: 1920 RPM (1000)

Hydraulic System

CCLS Closed Center Load Sensing, 114 L/min for Hitch and Remotes, 3 Mechanical Remote Valves, 80 L/min (Standard), 3 Mechanical + 2 Electrohydraulic or 5 Electrohydraulic Remote Valves, 100 L/min (Optional), Flow Divider with 2 Sections, 60 L/min per Section (Optional), Free-Flow Return (Standard), Power Beyond Ready and Free-Flow Return (Optional), Power Beyond with Push-Pull Connectors and Free-Flow Return (Optional), 2 Electrohydraulic Mid-Mounted Remote Valves with Multifunction Joystick, 100 L/min (Standard), Hydraulic Oil Take Out 23 L (Standard), 35 L Max with Additional Tank (Optional)

Rear 3-Point Hitch

Category II (Standard), Category III (Optional), Electronically-Controlled with Lower Link Draft Control, Position Control, Mixed Control, Float Position, 7200 kg, 90 mm Ram

Front 3-Point Hitch

Category III N, Electronically-Controlled with Position Control, 2500 kg (Optional)

Front Loader

McCormick M40 Front Loader, Controlled by SmartPilot Plus Joystick (Optional)

Wheelbase

2560 mm

Max Height

2880 mm without Beacon Lights, 2999 mm with PSM Satellite Steering System, Measured with Tyres 480/65R28 - 600/65R38

Max Height from Top of Cab to Rear Axle Centre

2101 mm, 2220 mm with PSM Satellite Steering System

Max Length

5360 mm with Front Weights

Max Width

2550 mm, Measured with Tyres 480/65R28 - 600/65R38

Steering Radius

5400 mm, Measured with Tyres 480/65R28 - 600/65R38

Shipping Weight

5500 kg (12125 lb)

Gross Vehicle Weight

9500 kg (20944 lb)

Operator Platform

High Vision 4-Post Cab with Panoramic Roof, In-Cab Noise Level 75 dB(A), Manual Climate Control (Standard), Automatic Climate Control (Optional), Low-Frequency Air Suspension Seat with Swivel, Height Adjustments, Manual Weight Control, Lumbar Support, Headrest, Hide-Away Buddy Seat, SmartPilot with Armrest, DSM 12” Touchscreen Monitor (Optional), MyLights, MyHMF, Radio Ready with 4 Speakers (Standard), Radio DAB MP3 with 4 Speakers, Bluetooth, Aux-In, Integrated Microphone (Optional), 10 Work Lights (2 Bonnet, 4 Roof Front, 4 Roof Rear, Standard), 14 Work Lights (2 Bonnet, 2 Handles LED, 4 Roof Front, 4 Roof Rear, 2 Rear Fenders LED, Optional), Full LED Work Lights (14, Optional), Beacon Lights (Left Side Standard, Left and Right Side Optional)

Onboard Technology

Front ISOBus (Optional), Rear ISOBus (Optional), PSM Precision Steering Management, Rear ISOBus & EazySteer Ready (Optional), PSM with EGNOS Full Kit (20 cm Precision, Optional), PSM with RTK NTRIP Full Kit (2 cm Precision, Optional), McCormick Fleet Management Ready (Standard), Fleet & Remote Diagnostics Management and McCormick Farm Pro Pack (1 Year Standard, 3 or 5 Years Optional, Selected Markets)
