Specification

Details

Tractor Model

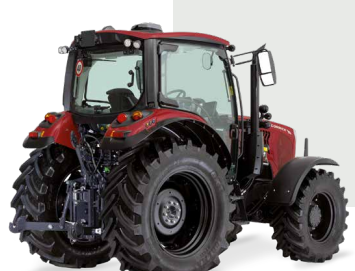

X5.110 HC

Vehicle Category

Horticulture Utility Tractor

Fuel Type

Diesel

Application

Planting, Fertilizing, Irrigating, Harvesting Vegetables, Fruits, Corn, Rice

Specification

Details

Engine

4 cylinders, 3.6 L, FPT F36, Turbo Aftercooled, Electronically-Controlled High Pressure Common Rail

Rated Horsepower

102 HP (75 kW) @ 2200 RPM

Maximum Horsepower

102 HP (75 kW) @ 1900 RPM

Maximum Torque

430 Nm @ 1400 RPM

Torque Backup

32%

Transmission Type

Mechanical (Standard), Electrohydraulic (Optional), 12 FWD + 12 REV with Synchro Shuttle (Standard), 12 FWD + 12 REV with RPS (Optional), 24 FWD + 24 REV with Hi-Lo Powershift (Optional), 24 FWD + 24 REV with Hi-Lo Powershift and RPS (Optional), Creeper (Optional)

Transmission Control

Hand Lever, Synchro Shuttle (Standard), Reverse Power Shuttle (RPS) with Modulation Control (Optional)

Minimum Speed

1.19 km/h without Creeper, 0.32 km/h (12+12), 0.26 km/h (Hi-Lo) with Creeper (IR 800 mm)

Engine Speed at 40 km/h

1960 RPM (Hi-Lo, IR 800 mm, 30 ECO)

Specification

Details

Front Axle

Rigid, 4WD, Hydralock Full Locking Differential

Rear Axle

Flanged Type, Electrohydraulic Differential Lock

Braking System

Ring Piston Hydraulic Brakes (Rear), Dual-Line Hydraulic Brake as per MR (Standard), Single-Line Hydraulic Brake or CUNA (Optional), Park Lock (Optional with RPS)

Cab Suspension

Total View Slim Cab Mounted on Silent Blocks

Specification

Details

Maximum Tyres Front

9.5R48 (IR 800 mm)

Maximum Tyres Rear

9.5R48 (IR 800 mm)

Specification

Details

Emissions System

Stage V - Tier 4 Final, DOC + SCRoF

Maintenance Interval

500 hours

Fuel Tank Capacity

135 L (35.7 gal)

AdBlue/DEF Tank Capacity

13 L (3.4 gal)

Cooling System Capacity

10 L (2.6 gal)

PTO Type

Rear: Mechanical (Standard), Electrohydraulic (Optional), 540 (Standard), 540/540E or 540/1000 (Optional), 1-3/8” Shaft with 6 Splines (Standard) or 21 Splines (Optional), Ground Speed PTO (Optional)

PTO Speeds

Rear: 1944 RPM (540), 1377 RPM (540E), 1917 RPM (1000)

Hydraulic System

Open-Centre, 62 + 32 L/min, 2-3 Mechanical Rear Remote Valves, 2 Mechanical Mid-Mounted Remote Valves with Multifunction Joystick, 80 L/min, Flow Divider/Flow Selector (Optional), Free-Flow Return, Hydraulic Oil Take-Out up to 35 L

Rear 3-Point Hitch

Category II, Fixed Ball Ends (Standard), Quick-Hitch Hooks or Telescopic Lower Links (Optional), Mechanical (Standard), Mechanical with ELS (Optional), 3900 kg with Twin Assistor Rams

Front Loader

McCormick M20 Front Loader, 1800 kg Lift Capacity, Controlled by Multifunction Joystick (Optional)

Wheelbase

2355 mm

Max Height

2870 mm without Beacon Lights, Measured with Tyres 9.5R48 - 9.5R48

Max Height from Top of Cab to Rear Axle Centre

2070 mm

Max Length

4400 mm with Front Weights, Track Width 1782-2542 mm, Measured with Tyres 9.5R48 4WD

Shipping Weight

4300 kg (9480 lb)

Gross Vehicle Weight

6000 kg (13228 lb)

Operator Platform

Total View Slim Cab Mounted on Silent Blocks, In-Cab Noise Level 78 dB(A), Filtration Category Cat. 2, Heat and Ventilation (Standard), Manual Climate Control (Optional), Opening Front Windscreen, Mechanical Seat (Standard), Comfort Air Suspension Seat (Optional), Trainer Seat (Optional), Radio Ready (Standard), Radio DAB MP3 with 2 Speakers, Bluetooth, Aux-In, Integrated Microphone (Optional), 4 Work Lights (2 Roof Front, 2 Roof Rear, Standard), 8 Work Lights (2 Roof Front, 2 Roof Rear, 2 Bonnet, 2 Handles LED, Optional), Beacon Lights (Left Side Standard, Left and Right Side Optional)

Onboard Technology

Rear ISOBus (Optional), PSM Precision Steering Management Ready Kit (Standard), Fleet & Remote Diagnostics Management and McCormick Farm Pro Pack (1 Year Standard, Selected Markets)
