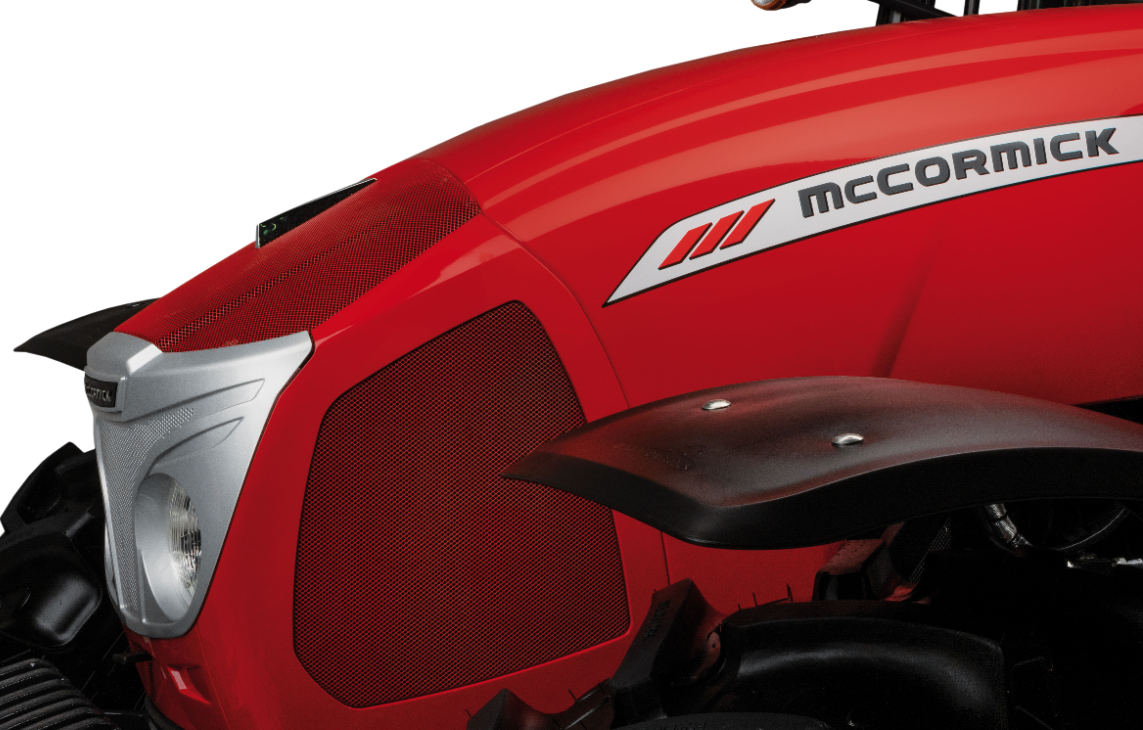

McCormick X5.100M – Utility Tractor for General Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
X5.100M |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Light to Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins, 16 Valves, Turbo Aftercooled, Direct Injection |
|
Rated Horsepower |
92.5 HP (68 kW) @ 2200 RPM |
|
Maximum Horsepower |
92.5 HP (68 kW) @ 1900 RPM |
|
Maximum Torque |
393 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical (Standard), Electrohydraulic (Optional), 12 FWD + 12 REV with Synchro Shuttle (Standard), 12 FWD + 12 REV with RPS (Optional), 36 FWD + 12 REV with T-Tronic HML & RPS (Optional) |
|
Clutch |
Mechanical (Standard), Electrohydraulic (Optional) |
|
Minimum Speed |
1.61 km/h with RPS, 1.33 km/h with HML (IR 750 mm), 0.4 km/h with Creeper (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD, Hydralock 100% Differential Lock |
|
Rear Differential Lock |
Electrohydraulic |
|
Braking System |
Ring Piston Hydraulic Brakes (Rear), Automatic 4WD Engagement When Braking (Front, Standard), Front Brakes (Optional), EEC Export Trailer Braking System |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size |
320/70R24 (IR 750 mm) |
|
Rear Tyre Size |
480/70R34 (IR 750 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3A, Without After-Treatment System |
|
Fuel Tank Capacity |
120 L |
|
PTO Type |
Mechanical (Standard), Electrohydraulic (Optional), 540/540E (Standard), 540/1000 (Optional) |
|
PTO Speeds |
540/540E (Standard), 540/1000 (Optional) |
|
Hydraulic System |
52 L/min or 60 L/min (Rear Hitch & Remote Valves) + 30 L/min (Steering), 2-3 Mechanical Remote Valves, Free-Flow Return |
|
Rear 3-Point Hitch |
Mechanical (Standard), Electronic (Optional), Category II, Fixed Ball Ends (Standard), Quick-Hitch Hooks (Optional), Ergonomic Lift System (Optional), 4500 kg Max Lift Capacity with Twin Assistor Rams |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2294 mm |
|
Max Height over Cab |
2620 mm (with 320/70R24 - 480/70R34, IR 750 mm) |
|
Shipping Weight |
3800 kg |
|
Gross Vehicle Weight |
6500 kg |
|
Operator Platform |
Total View Slim Cab, Mounted on Silent Blocks, In-Cab Noise Level 82 dB(A), Heat and Ventilation (Standard), Manual Climate Control (Optional) |
