Specification

Details

Tractor Model

X4.100 F/N/V/XL

Vehicle Category

Specialty Tractor

Fuel Type

Diesel

Application

Vineyards, Orchards, Specialty Crop Management

Specification

Details

Engine

4 cylinders, 2.9 L, Deutz AG TCD 2.9 L4 HP, Turbo Aftercooled, Electronically-Controlled Common Rail

Rated Horsepower

86 HP (63 kW) @ 2200 RPM

Maximum Horsepower

95 HP (70 kW) @ 1700 RPM

Maximum Torque

400 Nm @ 1600 RPM

Torque Backup

46.3%

Transmission Type

Speed Four (Standard), Power Four (Hi-Lo) or P3-Drive (HML) (Optional), 16 FWD + 16 REV with Creeper, 32 FWD + 32 REV with Hi-Lo and Creeper, 48 FWD + 16 REV with HML and Creeper (Optional)

Transmission Control

Manual (Speed Four / Power Four, Standard), Robotised with Multifunction Joystick (P3-Drive, Optional)

Minimum Speed

300 m/h (F), 280 m/h (N-V), 340 m/h (XL)

ECO Engine Speed at 40 km/h

1750 RPM (with Hi-Lo/HML)

Specification

Details

Front Axle

Rigid (Standard), Suspended (F-N-XL, Optional), 4WD with Electrohydraulic Engagement

Front Differential Lock

Limited Slip (F-N-XL with Rigid Front Axle), Hydralock (V, Standard), Hydralock (Rigid/Suspended, Optional)

Rear Axle

Mechanical Differential Lock

Braking System

Wet Multidisc Brakes (Rear), Wet Multidisc Brakes (Front with Hydralock Axle, Optional, Not Available for V), Mechanical Parking Brake, Hydraulic Brake as per MR & EEC Directives (Optional), Hydraulic Brake as per CUNA Regulations (Optional)

Cab Suspension

Suspended on Hydro Silent Blocks (Cab Version), Mechanical Suspension on Dampers (F-XL, Optional)

Specification

Details

Minimum Tyres Rear

380/70R24 (IR 575 mm, F-N), 360/70R20 (IR 500 mm, V), 420/70R24 (IR 600 mm, XL)

Maximum Tyres Rear

420/70R28 (IR 650 mm, F-N), 360/70R28 (IR 600 mm, V), 420/70R30 or 480/70R28 (IR 675 mm, XL)

Specification

Details

Emissions System

Stage V - Tier 4 Final, EGR + DOC + DPF + SCR

Maintenance Interval

1000 hours

Fuel Tank Capacity

80 L (F), 60 L (N-V), 85 L (XL)

AdBlue/DEF Tank Capacity

7.5 L

PTO Type

Rear: Servoassisted Clutch (Standard), Electrohydraulic Multidisc Clutch with RPS (Optional), 540/540E (Standard), 540/1000 or 540/540E/1000/1000E or Ground Speed PTO (Optional), Front: Electrohydraulic Multidisc with Modulated Engagement (F, N, XL, Optional, Not Available for V)

PTO Speeds

Rear: 540/540E/1000/1000E, Front: 1000 RPM

Hydraulic System

Open-Centre, Dual Pump (58 + 30 L/min, Standard), Triple Pump (30 + 58 + 36 L/min, 88 L/min Available for Hitch and Remotes, Optional), 2-3 Mechanical Rear Remote Valves (Standard), 3 Mechanical + 1 Electrohydraulic or 4 Electrohydraulic (Optional), 1-3 Electrohydraulic Mid-Mounted Remote Valves (Optional), 2/3 Section Flow Diverter with Flow Selector (Optional), Free Flow Oil Return

Rear 3-Point Hitch

Category II, Fixed Ball Ends (Standard), Quick Hooks with Mechanical or Hydraulic Top Link (Optional), Mechanical with ELS and Position/Draft/Mixed/Float Control (Standard), Electronic with Position/Draft/Mixed Control (Optional), 2700 kg (Standard), 3400 kg (XL with Assistor Rams, Optional)

Front 3-Point Hitch

Category 1/2/2N, Quick Hooks, Electrohydraulic, 1700 kg (F, N, XL), 1400 kg (V, Optional)

Front Loader

McCormick Front Loader, Controlled by Joystick (Optional)

Wheelbase

2140 mm (F, N, XL), 2190 mm (V)

Height from Top of Cab to Rear Axle Centre

1875 mm (Cat.2), 1930 mm (Cat.4)

Height from Top of Hood to Rear Axle Centre

825 mm (885 mm at Hood Top Point)

Min-Max Overall Width

1330-1770 mm (F, N), 1000-1680 mm (V), 1500-1950 mm (XL)

Shipping Weight

2900-3250 kg (6393-7165 lb, XL)

Gross Vehicle Weight

5250 kg (11574 lb)

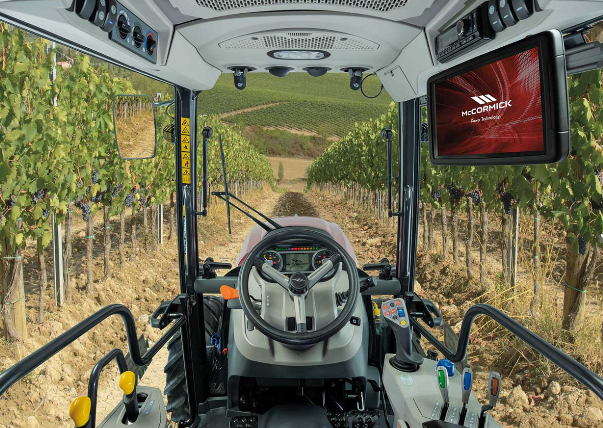

Operator Platform

High-Visibility 4-Post Monocoque Cab with Flat Floor and Opening Front & Rear Windows, Suspended on Hydro Silent Blocks (Standard), Mechanical Suspension on Dampers (F-XL, Optional), In-Cab Noise Level 73 dB(A), Dust Filter Category 2 (Standard), Active Carbon Filter Category 4 (Optional), Manual A/C, Radio Ready (Standard), DAB Radio and Sound System (Optional), Halogen Driving and Working Lights (Standard), LED Driving and Working Lights (Optional)

Onboard Technology

Rear ISOBUS Socket (Optional), McCormick Fleet Management Ready, Fleet & Remote Diagnostic Management and McCormick Farm Pro Pack (1 Year Standard, 3 or 5 Years Optional, Selected Markets)
