Specification

Details

Tractor Model

X4.100 F/GE/GB/XL

Vehicle Category

Specialty Tractor

Fuel Type

Diesel

Application

Vineyards, Orchards, Specialty Crop Management

Specification

Details

Engine

4 cylinders, 2.9 L, Deutz AG TCD 2.9 L4 HP, Turbo Aftercooled, Electronically-Controlled Common Rail

Rated Horsepower

86 HP (63 kW) @ 2200 RPM

Maximum Horsepower

95 HP (70 kW) @ 1700 RPM

Maximum Torque

400 Nm @ 1600 RPM

Torque Backup

46.3%

Transmission Type

Speed Four (Standard), Power Four (Hi-Lo) or Xtrashift (HML) (Optional), 12 FWD + 12 REV (Standard), 16 FWD + 16 REV with Creeper, 24 FWD + 24 REV with Hi-Lo, 32 FWD + 32 REV with Hi-Lo and Creeper, 36 FWD + 12 REV with HML, 48 FWD + 16 REV with HML and Creeper (Optional)

Transmission Control

Manual, Mechanical Synchro Shuttle (Standard), Electrohydraulic Reverse Power Shuttle with Modulation Control (Optional)

Minimum Speed

300 m/h (F), 280 m/h (GE-GB), 340 m/h (XL)

ECO Engine Speed at 40 km/h

1750 RPM (with Hi-Lo/HML)

Specification

Details

Front Axle

Rigid (Standard), Suspended (F-XL, Optional), 4WD with Electrohydraulic Engagement

Front Differential Lock

Limited Slip (Rigid), Hydralock (Rigid/Suspended)

Rear Axle

Mechanical Differential Lock

Braking System

Wet Multidisc Brakes (Rear), Wet Multidisc Brakes (Front with Hydralock Axle, Optional), Mechanical Parking Brake, Hydraulic Brake as per MR & EEC Directives (Optional), Hydraulic Brake as per CUNA Regulations (Optional)

Cab Suspension

Suspended on Hydro Silent Blocks (Cab Version), Suspended on Silent Blocks (ROPS Platform Version)

Specification

Details

Minimum Tyres Rear

380/70R24 (IR 575 mm, F), 360/70R24 (IR 525 mm, GE), 360/70R20 (IR 500 mm, GB), 420/70R24 (IR 600 mm, XL)

Maximum Tyres Rear

420/70R28 (IR 650 mm, F), 360/70R24 (IR 550 mm, GE), 360/70R20 (IR 500 mm, GB), 420/70R30 or 480/70R28 (IR 675 mm, XL)

Specification

Details

Emissions System

Stage V - Tier 4 Final, EGR + DOC + DPF + SCR

Maintenance Interval

1000 hours

Fuel Tank Capacity

65 L (F, GE, GB), 70 L (XL)

AdBlue/DEF Tank Capacity

7.5 L

PTO Type

Rear: Servoassisted Clutch (Standard), Electrohydraulic Multidisc Clutch with RPS (Optional), 540/540E (Standard), 540/1000 or 540/540E/1000/1000E or Ground Speed PTO (Optional), Front: Electrohydraulic Multidisc with Modulated Engagement (F, GE, XL, Optional)

PTO Speeds

Rear: 540/540E/1000/1000E, Front: 1000 RPM

Hydraulic System

Open-Centre, Dual Pump (58 + 30 L/min, Standard), Triple Pump (30 + 58 + 36 L/min, 88 L/min Available for Hitch and Remotes, Optional), 2-3 Mechanical Rear Remote Valves (Standard), 3 Mechanical + 1 Electrohydraulic (Optional), 1-3 Electrohydraulic Mid-Mounted Remote Valves (Optional), 2/3 Section Flow Divider with Flow Selector (Optional), Free Flow Oil Return

Rear 3-Point Hitch

Category II, Fixed Ball Ends (Standard), Quick Hooks with Mechanical or Hydraulic Top Link (Optional), Mechanical with ELS and Position/Draft/Mixed/Float Control (Standard), Electronic with Position/Draft/Mixed Control (Optional), 2700 kg (Standard), 3400 kg (XL with Assistor Rams, Optional)

Front 3-Point Hitch

Category 1/2/2N, Quick Hooks, Electrohydraulic, 1700 kg (F, GE, XL, Optional)

Front Loader

McCormick Front Loader, Controlled by Joystick (Optional)

Wheelbase

2140 mm

Height from Top of ROPS to Rear Axle Centre

1710 mm

Height from Top of Cab to Rear Axle Centre

1500 mm

Height from Top of Hood to Rear Axle Centre

825 mm (885 mm at Hood Top Point)

Min-Max Overall Width

1340-1690 mm (F), 1415-1530 mm (GE), 1400-1510 mm (GB), 1510-2100 mm (XL)

Shipping Weight

2800 kg (6173 lb)

Gross Vehicle Weight

5250 kg (11574 lb)

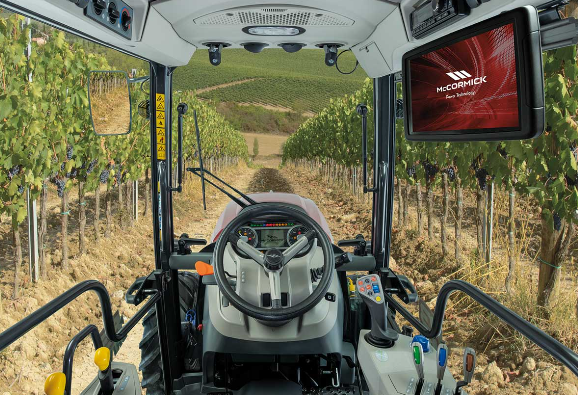

Operator Platform

Low-Profile 6-Post Cab with 228 mm High Central Tunnel and Opening Rear Window, Suspended on Hydro Silent Blocks, Dust Filter Category 2 (Standard), Active Carbon Filter Category 4 (Optional), Manual A/C, Radio Ready (Standard), DAB Radio and Sound System (Optional), Halogen Driving and Working Lights (Standard), LED Driving and Working Lights (Optional), ROPS with 228 mm High Central Tunnel, Suspended on Silent Blocks (Optional)

Onboard Technology

McCormick Fleet Management Ready, Fleet & Remote Diagnostic Management and McCormick Farm Pro Pack (1 Year Standard, 3 or 5 Years Optional, Selected Markets)
