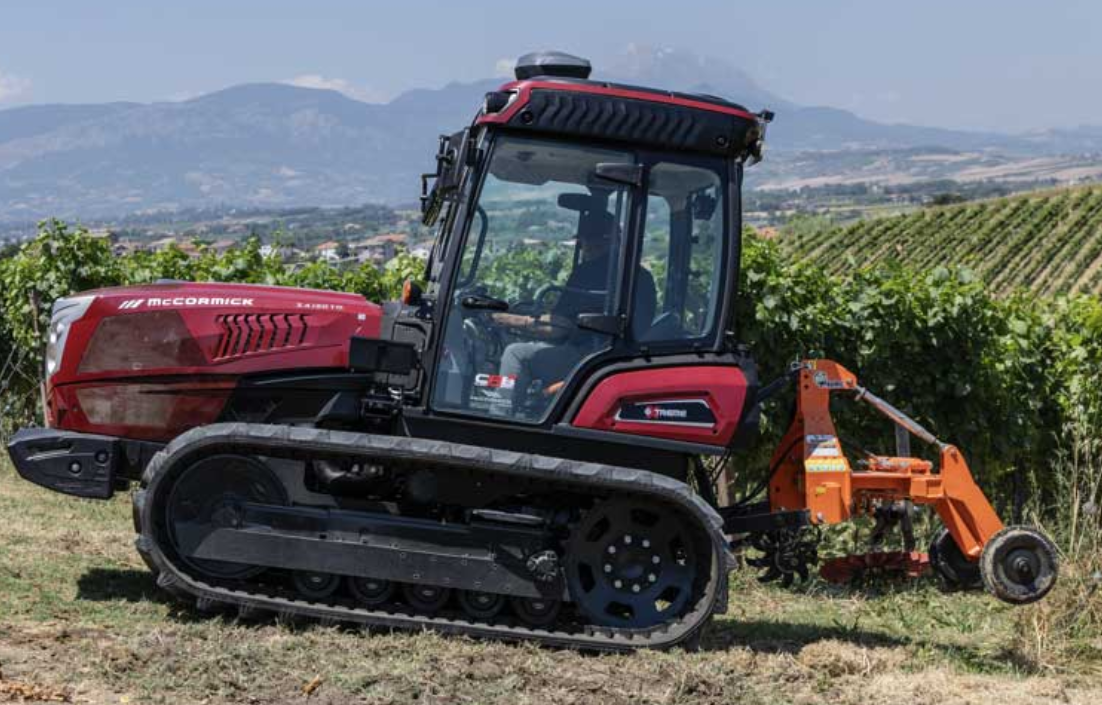

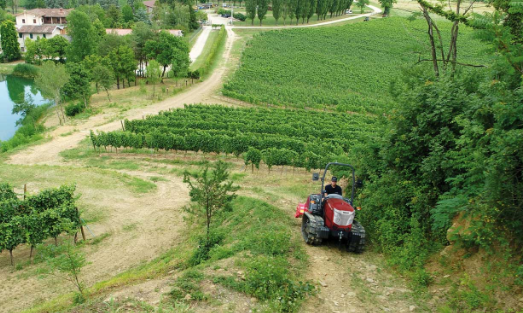

McCormick X4.095 TF/TM – Crawler Tractor for Orchards and Mountains
Specifications
|
Specification |
Details |
|
Tractor Model |
X4.095 TF/TM |
|
Vehicle Category |
Crawler Tractor |
|
Fuel Type |
Diesel |
|
Application |
Orchards (TF), Mountains (TM) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.9 L, Deutz AG TCD 2.9 L4 HP, 8 Valves, Turbo Intercooler, Common Rail Direct Injection, Liquid Cooling |
|
Maximum Horsepower |
90 HP (66 kW) |
|
Maximum Torque |
378 Nm |
|
Transmission Type |
Speed Four, 16 FWD + 8 REV Hi-Lo Overdrive (Standard), 16 FWD + 8 REV with Creeper (Optional) |
|
Transmission Control |
Manually operated - 12” independent dry clutch |
|
Reverse Shuttle |
Mechanical synchro shuttle |
|
Transmission Oil Cooler |
Standard |
Suspension & Brakes
|
Specification |
Details |
|
Steering System |
Hydrostatic Hi-Drive |
|
Steering Control |
2 independent levers with combined action on 2 wet clutches and on brakes |
|
Braking System |
Hydrostatic wet multidisc graphite brakes |
Wheels & Tyres
|
Specification |
Details |
|
Track Shoe Type |
Metal (Standard), Rubber (Optional) |
|
Track Shoe Width |
310-360 mm (Metal TF), 400-450 mm (Metal TM), 400 mm (Rubber TF/TM) |
|
Overall Width |
1410-1492 mm (Metal TF), 1532 mm (Rubber TF), 1700-1750 mm (TM) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V, EGR + DOC + DPF + SCR, AdBlue Tank 10 L |
|
Fuel Tank Capacity |
85 L |
|
PTO Type |
Rear: Servoassisted dry clutch, 540-540E (Standard), 540-1000 (Optional) |
|
PTO Speeds |
Rear: 540/540E (Standard), 540/1000 (Optional) |
|
Rotation - Spline Shaft Type |
Clockwise (viewed from tractor rear) - 1-3/8” PTO shaft with 6 splines |
|
Hydraulic System |
Open center - twin pump, 42 L/min (Hitch & Remotes) + 28 L/min (Steering), 180 bar, 3 Rear Remote Valves (Standard), 4 or 5 (Optional), 6 Front Quick Couplings (Optional) |
|
Rear Hydraulic Hitch |
Mechanical with position/draft/mixed/floating control, Category 2 with fixed ball ends, 3150 kg (Standard), 4500 kg with assistor rams (Optional) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
1650 mm |
|
Ground Clearance |
340 mm |
|
Height over ROPS |
2400 mm |
|
Height over Cab |
Category 4, 6-post with A/C (Optional) |
|
Overall Length without Front Weights |
3380 mm |
|
Shipping Weight |
3900 kg (TF), 4500 kg (TM) |
|
Operator Platform |
ROPS with central tunnel with side gears and reverse shuttle controls, Suspended on hydro-silentblocks, Category 4 6-post cab with A/C (Optional) |
|
Onboard Technology |
Digital dashboard, Fleet Management Ready |
|
Track Components |
5 Bottom Rollers, Permanently Lubricated Top Carrier Roller, Hydraulic Track Adjuster with Permanently Lubricated Sprocket Gear, Leaf Spring Front Suspension, Crossbar on Independent Track Frames Rear Suspension |
|
Front Weight Support |
Built-in |
|
Front Weights |
6x30 kg, 8x30 kg, 8x30 kg + 33 kg central front ballast (Optional) |
|
Lighting |
Halogen driving and working lights, Beacon light |
