McCormick X4.070 – Light Utility Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
X4.070 |
|
Vehicle Category |
Light Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Ploughing, Tilling, Harrowing, Sowing, Haymaking, Loader Work |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.5 L, Kohler KDI 2504 TCR, Turbo Aftercooled, Electronically-Controlled High Pressure Common Rail System |
|
Rated Horsepower |
68 HP (50 kW) @ 2200 RPM |
|
Maximum Horsepower |
68 HP (50 kW) @ 1400 RPM |
|
Maximum Torque |
310 Nm @ 1400 RPM |
|
Torque Backup |
43% |
|
Transmission Type |
Mechanical (Standard), Hydraulic (Optional), 24 FWD + 24 REV with Synchro Shuttle and Mechanical Hi-Lo (Standard), 12 FWD + 12 REV with Reverse Power Shuttle (Optional) |
|
Transmission Control |
Hand Lever, Synchro Shuttle (Standard), Reverse Power Shuttle (Optional) |
|
Minimum Speed |
0.43 km/h (24+24 Hi-Lo), 0.50 km/h (RPS) without Creeper (IR 650 mm) |
|
Engine Speed at 40 km/h |
2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD, Limited Slip Differential (Standard), Without Differential Lock (Optional) |
|
Rear Axle |
Flanged Type, Mechanical Differential Lock |
|
Braking System |
Automatic 4WD Engagement When Braking, Ramp Brakes (Rear), 2-Line Hydraulic Brake as per MR (Optional), Single-Line Hydraulic Brake or CUNA (Optional), 2-Line Pneumatic Brake (Optional, Aftermarket) |
|
Cab Suspension |
Total View Slim Mounted on Silent Blocks (Cab Version), Iso-Mounted Platform with Folding Two-Post ROPS (Platform Version) |
Wheels & Tyres
|
Specification |
Details |
|
Maximum Tyres Front |
320/70R24 (IR 525 mm) |
|
Maximum Tyres Rear |
480/70R30 (IR 700 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V - Tier 4 Final, DOC + DPF |
|
Maintenance Interval |
500 hours |
|
Fuel Tank Capacity |
85 L (22.5 gal) |
|
PTO Type |
Rear: Mechanical, 540/540E, 1-3/8” Shaft with 6 Splines, Ground Speed PTO, Front: Aftermarket (Optional) |
|
PTO Speeds |
Rear: 1937 RPM (540), 1648 RPM (540E) |
|
Hydraulic System |
Open-Centre, 52 + 30 L/min, 2-3 Mechanical Rear Spool Valves, 2 Mechanical Mid-Mounted Spool Valves, Free-Flow Return |
|
Rear 3-Point Hitch |
Category II, Fixed Ball Ends (Optional), Quick Hitch Hooks (Optional), Telescopic Lower Links (Optional), Mechanical (Standard), Mechanical with ELS (Optional), 3000 kg |
|
Front 3-Point Hitch |
Category II, Quick Hitch Hooks, 1650 kg (Aftermarket) |
|
Front Loader |

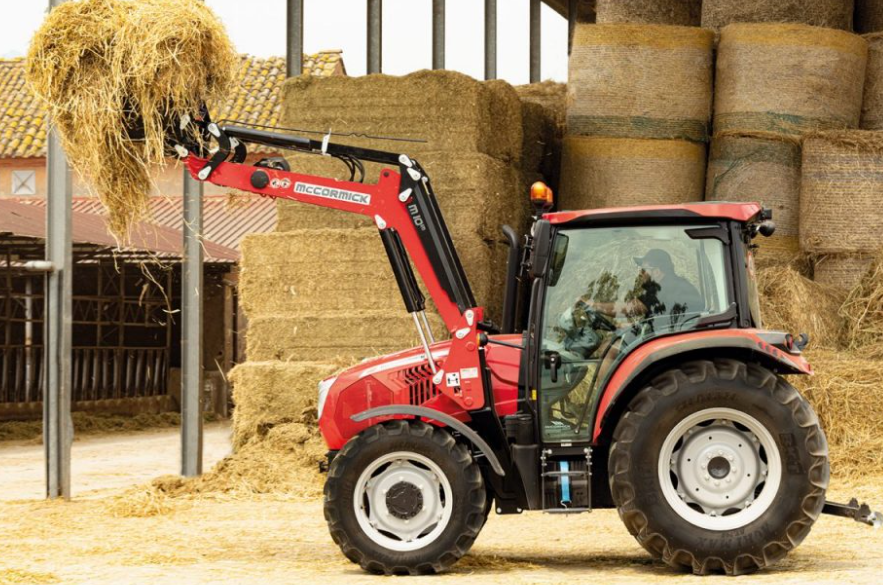

McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2110 mm |
|
Max Height |
2433 mm without Beacon Lights, Measured with Tyres 320/70R20 - 420/70R28 |
|
Max Height from Top of Cab to Rear Axle Centre |
1783 mm |
|
Max Length |
4073 mm with Front Weights, Track Width 1824-2335 mm, Measured with Tyres 320/70R20 - 420/70R28 |
|
Steering Radius |
4425 mm, Measured with Tyres 320/70R24 - 480/70R30 |
|
Shipping Weight |
3200 kg (7055 lb, Cab), 3050 kg (6724 lb, Platform) |
|
Gross Vehicle Weight |
5100 kg (11244 lb) |
|
Operator Platform |
Total View Slim Cab Mounted on Silent Blocks, In-Cab Noise Level 82 dB(A), Filtration Category 2, Heat and Ventilation (Standard), Manual Climate Control (Optional), Opening Rear Windshield, Comfort Pneumatic Seat (Optional), Platform Version (Optional), Trainer Seat (Optional), Radio Ready (Standard), DAB+ Radio with 2 Speakers, Handsfree Bluetooth, MP3 Player (Optional), 4 Halogen Work Lights (2 Rear, 2 Front), Beacon Lights (Left Side Standard, Left and Right Side or Without Optional) |
|
Onboard Technology |
McCormick Fleet Management Ready, Fleet & Remote Diagnostics Management and McCormick Farm (Start Pack 1 Year Standard, Pro Pack 1 Year, 3 Years, or 5 Years Optional, Selected Markets) |
