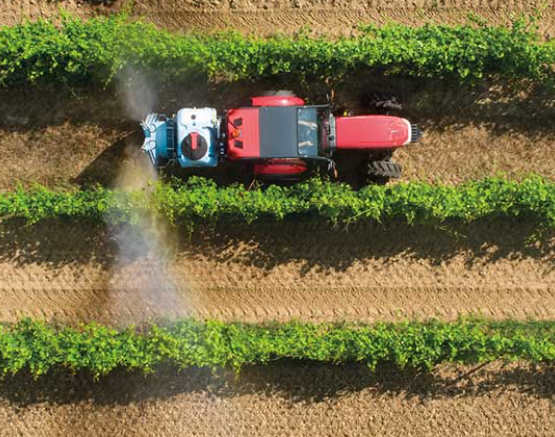

McCormick X3.080 F-GE – Specialty Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
X3.080 F-GE |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Specialty Crop Management |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.5 L, Kohler KDI, 16 Valves |
|
Rated Horsepower |
75 HP (54.5 kW) @ 2200 RPM |
|
Maximum Horsepower |
75 HP (54.5 kW) @ 2200 RPM |
|
Maximum Torque |
315 Nm @ 1600 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV (Standard), 16 FWD + 16 REV with Creeper (Optional) |
|
Transmission Control |
Mechanical |
|
Clutch |
11” Independent Dry Dual Clutch, Mechanical Control |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD with Electrohydraulic Engagement, Maximum Steering Angle 55° |
|
Rear Differential Lock |
100% Electrohydraulic |
|
Braking System |
Wet Multidisc Brakes (Rear), Automatic 4WD Engagement While Braking (Front), Mechanical Parking Brake, Hydraulic Trailer Braking or Hydraulic Braking per MR & EEC Directives (Optional) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V - Tier 4 Final, EGR + DOC |
|
Fuel Tank Capacity |
50 L |
|
PTO Type |
Rear: Mechanical, 540/540E/1000, Ground Speed PTO (Standard), Front: 1000 RPM (Optional) |
|
PTO Speeds |
Rear: 540/540E/1000, Front: 1000 RPM |
|
Hydraulic System |
Rear Hitch Hydraulic Pump: 50 L/min, Steering Pump: 30 L/min, 1-3 Mechanical Rear Remote Valves, 1 Rear Remote Valve with Double Outlets for Mid-Mount Couplers (Optional), Rear Free Flow Return Line with Quick-Coupling (Optional) |
|
Rear 3-Point Hitch |
Mechanically-Controlled, Draft/Position/Mixed/Float Control, Length and Width Adjustment of Lower Links (Optional), 2200 kg Lifting Capacity (Standard and Heavy-Duty with ELS) |
|
Front 3-Point Hitch |
1000 kg Lifting Capacity (Optional) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
1950 mm |
|
Height from Top of ROPS to Ground |
2214 mm |
|
Minimum Ground Clearance |
186 mm |
|
Overall Length |
3652 mm |
|
Minimum Width |
1358 mm |
|
Shipping Weight |
2200 kg (4850 lb) |
|

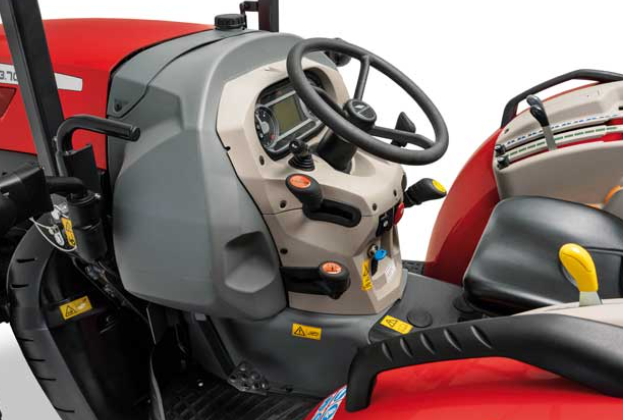

Operator Platform |
Iso-Mounted Platform (Standard), Low-Profile Cab with Air Conditioning, Digital Instrument Panel, LED Work Lights (Optional) |
