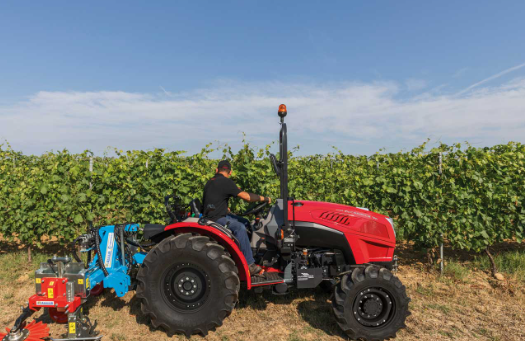

McCormick X2.40 GE – Compact Utility Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
X2.40 GE |
|
Vehicle Category |
Compact Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming, Light-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 2.0 L, Yanmar, 8 Valves, Tier 3, Without After-Treatment System |
|
Maximum Horsepower |
50.7 HP (37.3 kW) |
|
Maximum Torque |
150 Nm @ 2000 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV with Synchro Shuttle |
|
Clutch |
Not Specified |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD with Hydralock, No Brakes |
|
Front Differential Lock |
Hydralock Full Diff Lock (Optional, 4WD) |
|
Braking System |
Not Specified |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyre Size (Min-Max) |
320/70 R20 (IR 475 mm) to 360/70 R24 (IR 550 mm) |
|
Track Width (Min-Max) |
1387-1617 mm |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3, Without After-Treatment System |
|
Fuel Tank Capacity |
40 L |
|
PTO Type |
Mechanical, 540/540E RPM |
|
Hydraulic System |
28 L/min (Hitch & Remotes) + 20 L/min (Steering) |
|
Rear 3-Point Hitch |
1200 kg Lifting Capacity |
|
Front 3-Point Hitch |
Category 1N, 400 kg Lifting Capacity |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
1746 mm |
|
Max Length |
3285 mm (with Front Weights) |
|
Max Height over FOPS/Cab |
2124-2199 mm (FOPS), 2205-2280 mm (CAB) |
|
Height to Rear Axle Centre |
1473 mm |
|
Shipping Weight |
1575 kg (Platform), 1735 kg (Cab) |
|
Gross Vehicle Weight |
3050 kg |
|

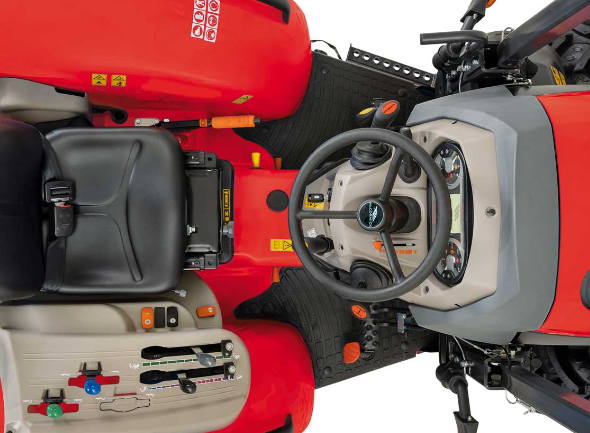

Operator Platform |
ROPS (Platform), 4-Post FOPS or Cab with Silent Blocks (Optional), Heating and Ventilation (Standard), Manual Climate Control (Cab), Opening Front/Rear Windows, Optional Radio (Cab), 2 Rear + 2 Front Halogen Lights (Cab), 1 Rear Halogen Light (Platform) |
