McCormick X2.060 GE – Specialty Tractor for Vineyards and Orchards
Specifications
|
Specification |
Details |
|
Tractor Model |
X2.060 GE |
|
Vehicle Category |
Specialty Tractor |
|
Fuel Type |
Diesel |
|
Application |
Vineyards, Orchards, Specialty Crop Management |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
3 cylinders, 1.9 L, Kohler KDI 1903 TCR, 12 Valves, Turboaftercooler, Common Rail Direct Injection, Liquid Cooling |
|
Maximum Horsepower |
57 HP (42 kW) @ 2600 RPM |
|
Maximum Torque |
200 Nm @ 1200 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV (Standard), 16 FWD + 16 REV with Creeper (Optional) |
|
Transmission Control |
Mechanical |
|
Clutch |
Mechanical |
|
Minimum Speed |
770 m/h (Standard), 220 m/h with Creeper |
|
Engine Speed at 30 km/h |
2600 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid 4WD |
|
Front Differential Lock |
Hydralock |
|
Rear Braking System |
Mechanical Wet Multi-Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyre Size (Min - Max) |
320/70R20 (IR 475 mm) - 320/70R24 (IR 525 mm) |
|
Overall Width (Min - Max) |
1260 - 1615 mm |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage V, EGR + DOC + DPF |
|
Fuel Tank Capacity |
40 L |
|
PTO Type |
Rear: Mechanical Dry Clutch, 540/540E with Ground Speed (Standard), Front: Mechanical, 1000 RPM (Optional) |
|
PTO Speeds |
Rear: 540/540E, Front: 1000 RPM |
|
Hydraulic System |
Open-Centre, Dual Pump, 35 L/min (Rear Hitch & Remotes) + 20 L/min (Steering), 2 Rear Remote Valves (Standard), 2 Standard + 1 with Float Position (Optional) |
|
Rear 3-Point Hitch |
Mechanical with Position and Draft Control, Category 1 with Fixed Ball Ends (Standard), Category 1/Category 2 with Quick-Hitch Hooks and Mechanical Top Link (Optional), 1200 kg Lifting Capacity |
|
Front 3-Point Hitch |
Mechanical, Category 1N, 400 kg Lifting Capacity (Optional) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
1770 mm |
|
Height over ROPS (Min - Max) |
2030 - 2105 mm |
|
Height over Bonnet (Min - Max) |
1131 - 1206 mm |
|
Overall Length with Front Weights (Min - Max) |
3168 - 3504 mm |
|
Shipping Weight (ROPS) |
1580 kg |
|
Gross Vehicle Weight |
3050 kg |
|

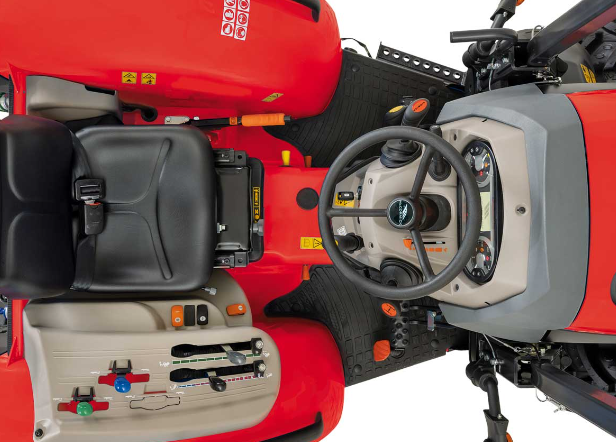

Operator Platform |
ROPS Platform (Standard), Radio Ready (Standard), Radio and Sound System (Optional) |
|
Onboard Technology |
Fleet Management Ready, 3-Year or 5-Year Subscription (Optional), Engine Memo Switch |
