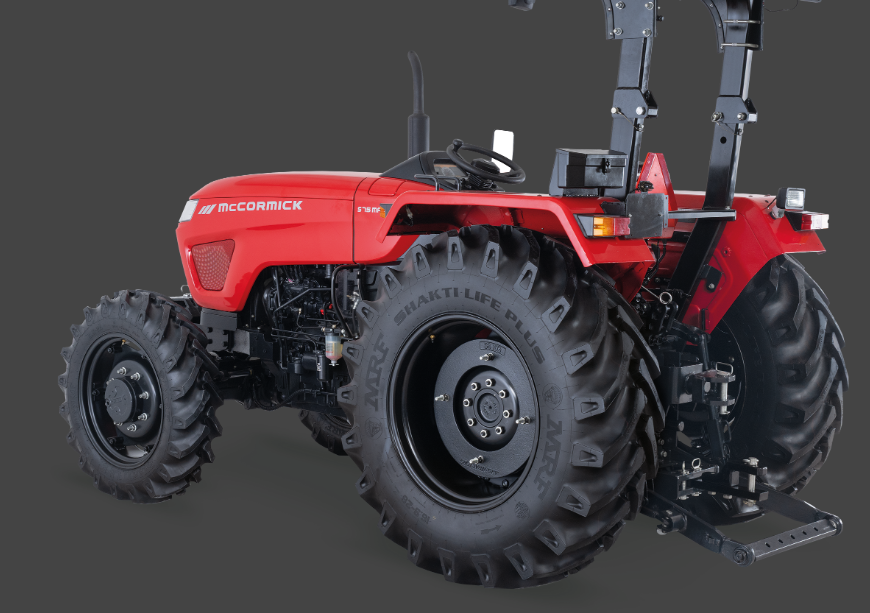

McCormick S-MAX II 90BW – Utility Tractor for General Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
S-MAX II 90BW |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Light to Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.0 L, SIMPSON, Turbo Aftercooled, 8 Valves, Tier 2 |
|
Maximum Horsepower |
90 HP (66.2 kW) @ 2050 RPM |
|
Maximum Torque |
378 Nm @ 1300 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV |
|
Clutch |
Independent Dry Dual Clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD (Standard), 2WD (Optional) |
|
Rear Differential Lock |
Mechanical |
|
Braking System |
Ramp Brakes, Wet Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Max Rear Tyre Size (4WD) |
18.4x30 (IR 725 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 2, Without After-Treatment System |
|
Fuel Tank Capacity |
65 L |
|
PTO Type |
Mechanical, 540/540E RPM |
|
Hydraulic System |
33 L/min (Hitch & Remotes) + 27 L/min (Steering), 2 DA Remote Valves |
|
Rear 3-Point Hitch |
Mechanical, 2300 kg Lifting Capacity |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2230 mm (4WD) |
|
Shipping Weight |
3216 kg (4WD) |
|

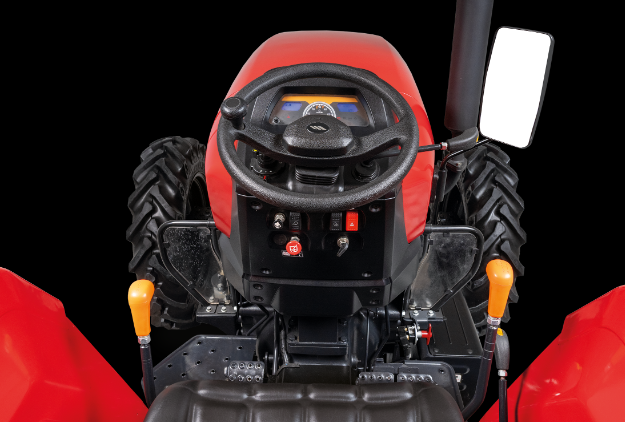

Operator Platform |
ROPS Frame, Mechanical Seat, Optional Canopy |
