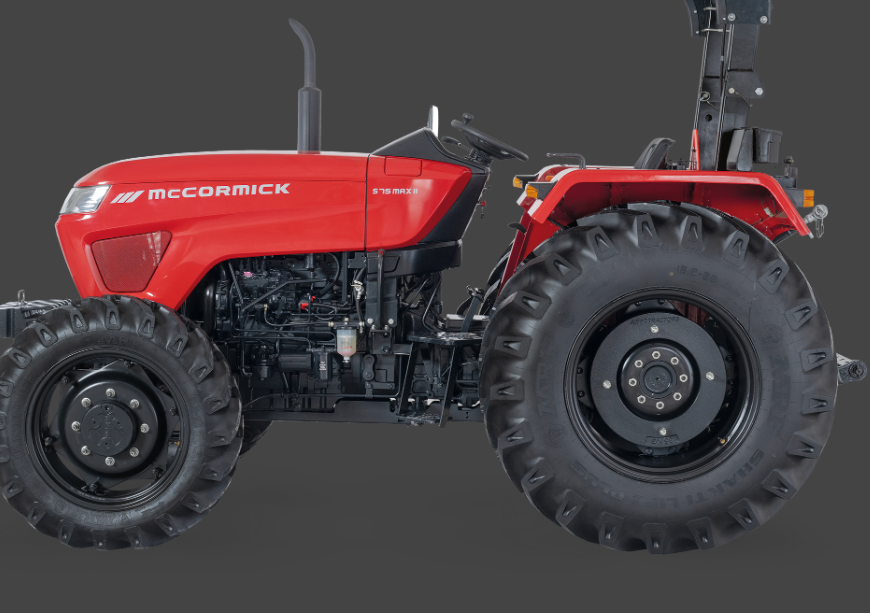

McCormick S-MAX II 75B/BW – Utility Tractor for General Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
S-MAX II 75B/BW |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Light to Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|

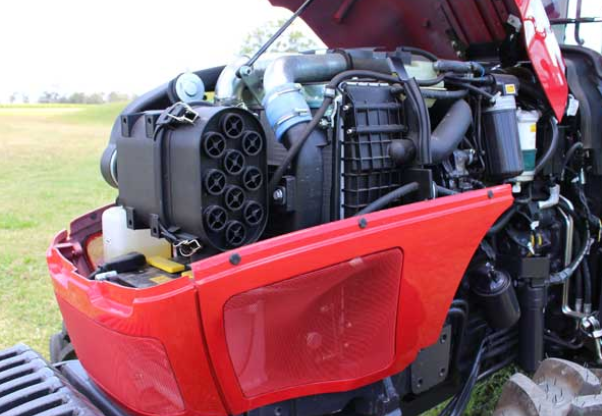

Engine |
4 cylinders, 4.0 L, SIMPSON, Turbo (75B) or Turbo Aftercooled (75BW), 8 Valves, Tier 2 |
|
Maximum Horsepower |
79 HP (58.1 kW) @ 2200 RPM |
|
Maximum Torque |
291 Nm @ 1200 RPM |
|
Transmission Type |
Mechanical, 8 FWD + 2 REV (Standard), 12 FWD + 12 REV (Optional) |
|
Clutch |
Independent Dry Dual Clutch (8+2), Optional (12+12) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD (Standard), 2WD (Optional) |
|
Rear Differential Lock |
Mechanical |
|
Braking System |
Ramp Brakes, Wet Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Max Rear Tyre Size (4WD) |
16.9x30 (IR 700 mm, Standard with 12+12), 18.4x30 (IR 725 mm, Optional with 8+2) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 2, Without After-Treatment System |
|
Fuel Tank Capacity |
65 L |
|
PTO Type |
Mechanical, 540/540E RPM |
|
Hydraulic System |
33 L/min (Hitch & Remotes) + 27 L/min (Steering), 1 DA Remote Valve (Standard, 8+2), 2 DA (Standard, 12+12), 1 SA/DA + 1 SA (Optional, 8+2) |
|
Rear 3-Point Hitch |
Mechanical, 2100 kg Lifting Capacity |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2165 mm (4WD, 8+2), 2230 mm (4WD, 12+12) |
|
Shipping Weight |
2904 kg (4WD, 8+2), 3171 kg (4WD, 12+12) |
|
Operator Platform |
ROPS Frame, Mechanical Seat, Optional Canopy |
