McCormick S-MAX II 60 – Utility Tractor for General Farming

Images:

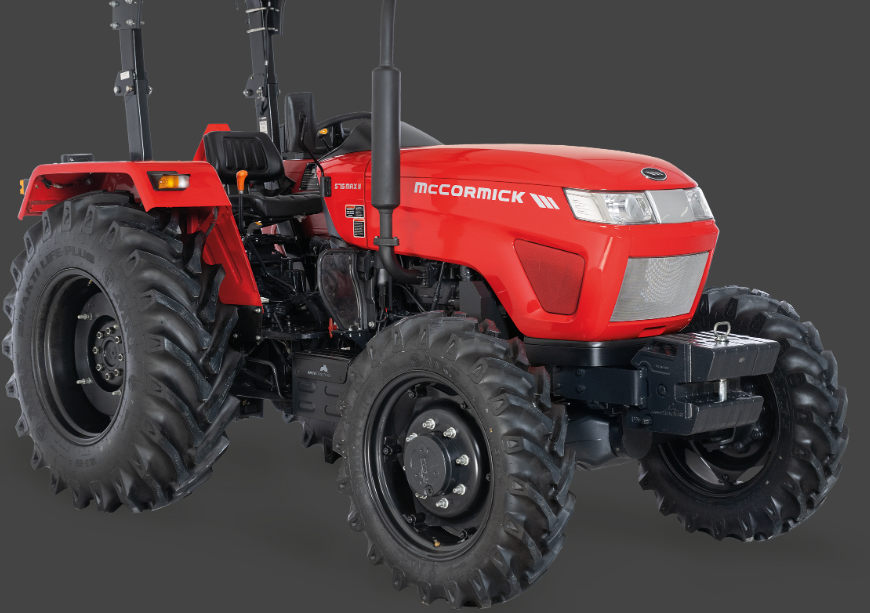

1

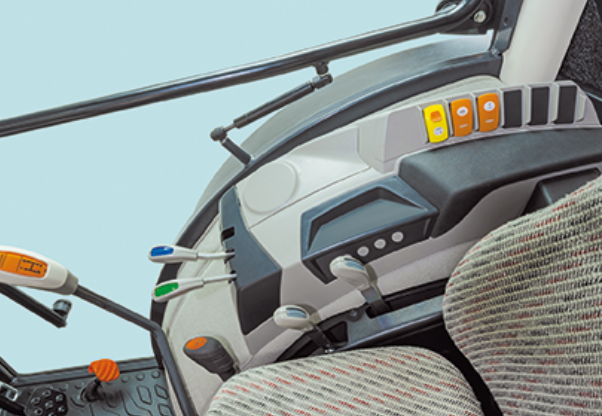

2

Specifications

Specification	Details
Tractor Model	S-MAX II 60
Vehicle Category	Utility Tractor
Fuel Type	Diesel
Application	General Farming, Light-Duty Fieldwork

Frame & Drivetrain

Specification	Details
Engine	4 cylinders, 4.0 L, TMTL, Turbo, 8 Valves, Tier 3
Maximum Horsepower	58.5 HP (43 kW) @ 2150 RPM
Maximum Torque	243 Nm @ 1300 RPM
Transmission Type	Mechanical, 8 FWD + 2 REV (Standard), 12 FWD + 12 REV (Optional)
Clutch	Independent Dry Dual Clutch

Suspension & Brakes

Specification	Details
Front Axle	4WD (Standard), 2WD (Optional)
Rear Differential Lock	Mechanical
Braking System	Ramp Brakes, Wet Disc Brakes

Wheels & Tyres

Specification	Details
Max Rear Tyre Size (4WD)	16.9x28 (IR 675 mm)

Components & Features

Specification	Details
Emissions System	Tier 3, Without After-Treatment System
Fuel Tank Capacity	65 L
PTO Type	Mechanical, 540/540E RPM
Hydraulic System	33 L/min (Hitch & Remotes) + 27 L/min (Steering), 1 DA Remote Valve (Standard), 1 SA/DA + 1 SA (Optional)
Rear 3-Point Hitch	Mechanical, 2100 kg Lifting Capacity
Front 3-Point Hitch	Optional, Category II, 2000 kg Lift Capacity (Assumed)
Front Loader	McCormick Front Loader, Controlled by Joystick (Optional)
Wheelbase	2065 mm (4WD)
Shipping Weight	2764 kg (4WD)
Operator Platform	ROPS Frame, Mechanical Seat, Optional Canopy

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
