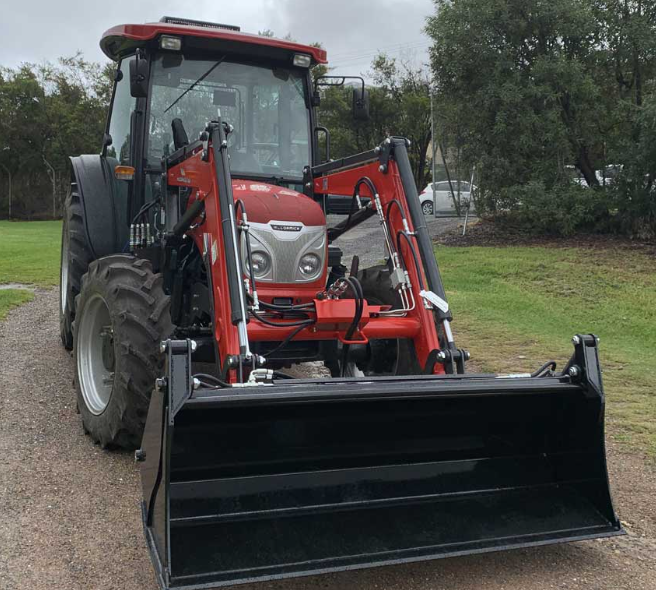

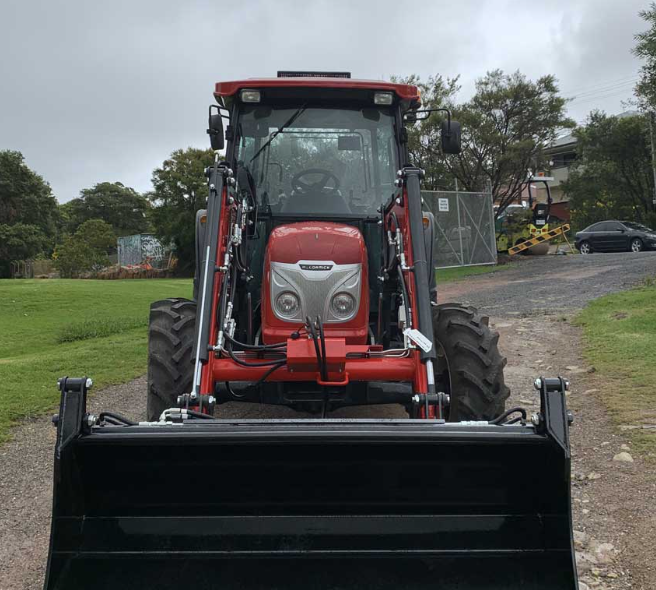

McCormick S90BW S-MAX CAB – Utility Tractor for General Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
S90BW S-MAX CAB |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Light to Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.1 L, ITL 4105FLT, Turbo, Water Cooling, Stage II |
|
Maximum Horsepower |
90 HP (66 kW) @ 2200 RPM |
|
Maximum Torque |
339 Nm @ 1400 RPM |
|
Transmission Type |
Synchro Mesh, 12 FWD + 12 REV, Min-Max Speed 1.69-35.73 km/h |
|
Clutch |
Independent Dry Dual Clutch, 310 mm (12 in.), Mechanically Operated |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD (Standard), 2WD (Optional), Power Steering |
|
Rear Differential Lock |
Mechanical |
|
Braking System |
Oil-Immersed Discs, Mechanical Actuation, Independent Hand Brake |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size (4WD) |
12.4-24 |
|
Rear Tyre Size (4WD) |
18.4-30 |
|
Optional Tyre Sizes (4WD) |
12.4-24 / 13.6-38 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage II |
|
Fuel Tank Capacity |
88 L |
|
PTO Type |
Hand Operated, Ground Speed PTO |
|
PTO Speeds |
540/540E RPM (Standard), 540/1000 RPM (Optional) |
|
Hydraulic System |
44 L/min (Remote), 67 L/min (Total), 2SA/2DA Spool Valves, 4 Hydraulic Ports |
|
Rear 3-Point Hitch |
Category II, Position/Draft/Floating Control, Automatic Draft Control, 2500 kg Lifting Capacity |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2345 mm (4WD) |
|
Total Length |
4160 mm (4WD) |
|
Max Height over Cab |
2660 mm |
|
Ground Clearance |
405 mm (4WD) |
|
Total Width |
2090 mm (4WD) |
|
Gross Weight |
3517 kg (4WD) |
|
Operator Platform |
Cab with HVAC, Adjustable Driver Seat, Analogue Control Panel, Registration Plate with Light |
