McCormick S-Max II 90BW Tier 0– Utility Tractor for Field and Farm Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
S-Max II 90BW Tier 0 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field and Farm Tasks, Open-Field Work (Plowing, Fertilizing) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4 L, SIMPSON, Turbo Aftercooled, Dry Air Filter |
|
Maximum Horsepower |
90 HP (66.2 kW) @ 2050 RPM |
|
Maximum Torque |
378 Nm @ 1300 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV |
|
Clutch |
Independent Dry Dual Clutch |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD (Standard), 2WD (Optional) |
|
Differential Locks |
Mechanical Rear Differential Lock |
|
Braking System |
Wet Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Max Rear Tyre Size |
18.4x30 (2WD/4WD, IR 725) |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
65 L |
|
Emissions System |
Tier 0, without After-Treatment System |
|
PTO Type |
Mechanical, Ground Speed PTO |
|
PTO Speeds |
540/540E RPM |
|
Hydraulic System |
33 L/min (Hitch) + 27 L/min (Steering), 2 Double-Acting Remote Valves, Free Flow Return |
|
Rear Hydraulic Hitch |
Mechanical, Lifting Capacity 2300 kg |
|

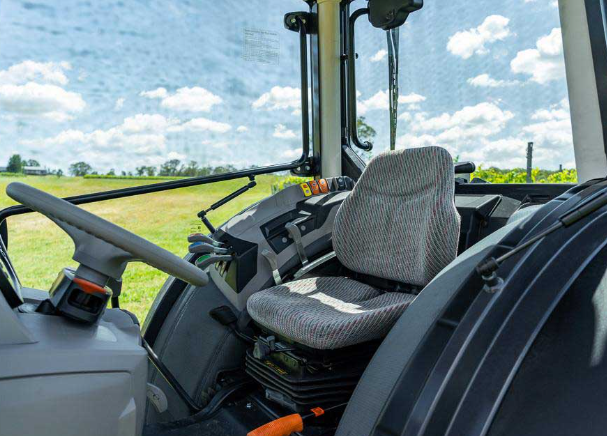

Operator Platform |
ROPS Frame, Mechanical Seat, Canopy (Optional) |
|
Shipping Weight |
2990 kg (2WD), 3216 kg (4WD) |
|
Wheelbase |
2165 mm (2WD), 2230 mm (4WD) |
