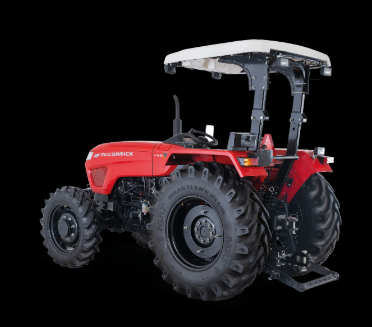

McCormick S-Max II 75A/AW – Utility Tractor for Field and Farm Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
S-Max II 75A/AW |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field and Farm Tasks, Open-Field Work (Plowing, Fertilizing) |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4 L, SIMPSON, Turbo, Dry Air Filter |
|
Maximum Horsepower |
75 HP (55.1 kW) @ 2200 RPM |
|
Maximum Torque |
291 Nm @ 1200 RPM |
|
Transmission Type |
Mechanical, 8 FWD + 2 REV (Standard), 12 FWD + 12 REV (Optional) |
|
Clutch |
Independent Dry Dual Clutch (8+2), Independent Dry Dual Clutch (12+12, Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD (Standard), 2WD (Optional) |
|
Differential Locks |
Mechanical Rear Differential Lock |
|
Braking System |
Wet Disc Brakes |
Wheels & Tyres
|
Specification |
Details |
|
Max Rear Tyre Size |
16.9x30 (2WD/4WD, IR 700, Standard with 12+12), 16.9x28 (2WD/4WD, IR 675, Optional with 8+2) |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
65 L |
|
Emissions System |
Tier 0, without After-Treatment System |
|
PTO Type |
Mechanical, Ground Speed PTO |
|
PTO Speeds |
540/540E RPM |
|
Hydraulic System |
33 L/min (Hitch) + 27 L/min (Steering), 1 Double-Acting Remote Valve (Standard, 8+2), 1 Single/Double-Acting + 1 Single-Acting (Optional, 8+2), 2 Double-Acting (Standard, 12+12), Free Flow Return |
|
Rear Hydraulic Hitch |
Mechanical, Lifting Capacity 2100 kg |
|
Operator Platform |
ROPS Frame, Mechanical Seat, Canopy (Optional) |
|
Shipping Weight |
2545 kg (2WD, 8+2), 2904 kg (4WD, 8+2), 2945 kg (2WD, 12+12), 3171 kg (4WD, 12+12) |
|
Wheelbase |
2115 mm (2WD, 8+2), 2165 mm (4WD, 8+2), 2165 mm (2WD, 12+12), 2230 mm (4WD, 12+12) |
