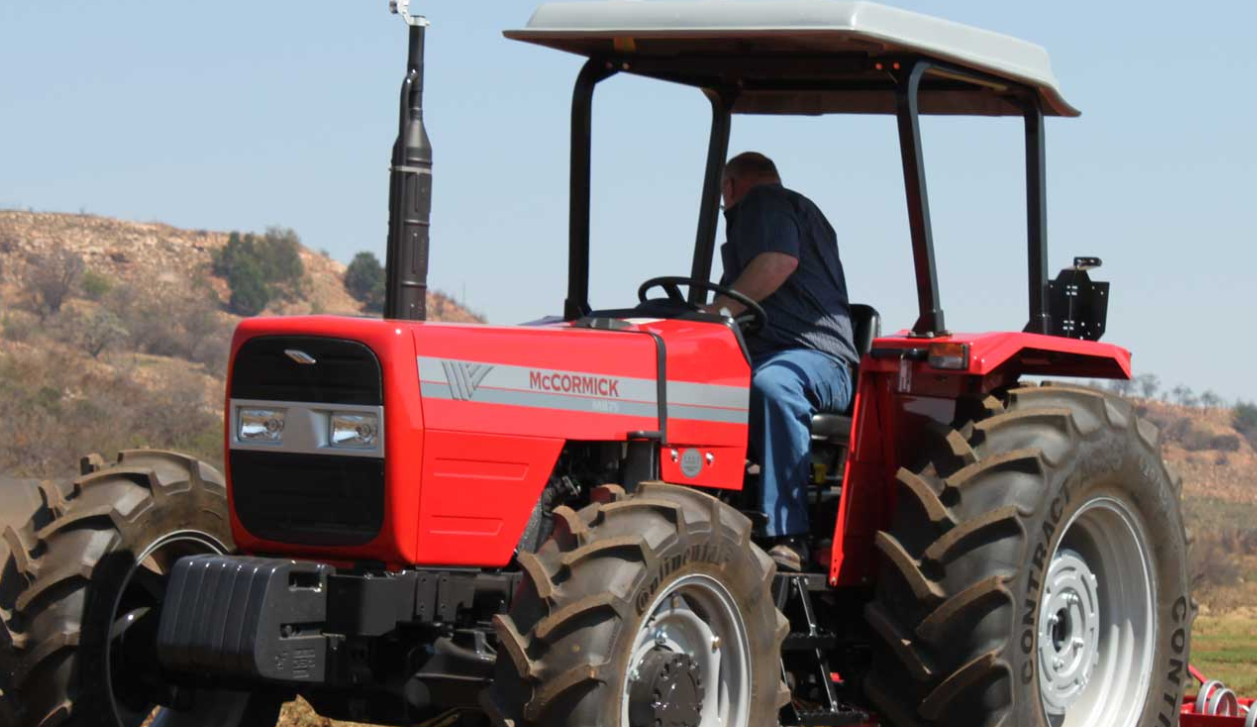

McCormick MB 75 TIER 2 – Utility Tractor for General Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
MB 75 TIER 2 |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Light to Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins 1104C-44, Direct Injection, Bore/Stroke 105/127 mm, Compression Ratio 19.3:1, Water Cooling |
|
Maximum Horsepower |
75 HP (55 kW) @ 1400 RPM |
|
Maximum Torque |
290 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV with Reverse Shuttle (Standard), 12 FWD + 4 REV (Optional), 24 FWD + 12 REV with Creeper (Optional) |
|
Clutch |
Independent Dry Dual Clutch, 12 in. (3048 mm), Cerametalic Coating, Mechanical Engagement |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD, Hydrostatic Steering, Epicyclic Final Drives, Mechanical Engagement, 55° Steering Angle, Twin-Lock Hydraulic Diff Lock (Optional) |
|
Rear Differential Lock |
Mechanical (Standard), Hydraulic (Optional) |
|
Braking System |
Oil-Bath Graphite-Coated Rear Brakes (10 Discs), Mechanical Engagement, Hydraulic Trailer Braking System (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyre Size (4WD) |
12.4-24 |
|
Rear Tyre Size (4WD) |
18.4-30 |
|
Optional Tyre Sizes (4WD) |
320/70R24 / 16.9R30, 13.6R24 / 13.6R38, 11.2R24 / 16.9R30, 12.4R24 / 13.6R38, 13.6R24 / 16.9R34, 380/70R24 / 480/70R34 |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 2 |
|
Fuel Tank Capacity |
86 L |
|
PTO Type |
Mechanical Engagement, 1-3/8 in. (34.9 mm) Shaft with 6 Splines, Ground Speed PTO |
|
PTO Speeds |
540/750 RPM (Standard), 540/1000 RPM (Optional) |
|
PTO Power |
68.5 HP (50.5 kW) |
|
Hydraulic System |
41 L/min (Hitch) + 24 L/min (Steering), 180 bar, 1 Standard/2 Optional Auxiliary Valves |
|
Rear 3-Point Hitch |
Mechanical, Category II, Position/Draft/Intermix/Floating Control, 3000 kg (Standard), 4520 kg with 2 Additional Cylinders (Optional) |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2316 mm (4WD) |
|
Max Height over Cab/Safety Frame |
2590 mm |
|
Ground Clearance |
430 mm (4WD) |
|
Minimum Width |
1870 mm |
|
Shipping Weight |
3147 kg (4WD) |
|
Operator Platform |
4-Post Safety Frame, Standard Sprung Seat, Analogic Control Panel, Optional Cab with Heating/Ventilation, Front/Rear Doors, Deluxe Seat |
