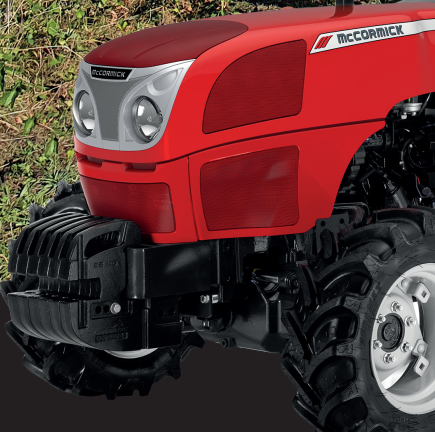

McCormick F 120 GE – Narrow Tractor for Specialty Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
F 120 GE |
|
Vehicle Category |
Narrow Tractor |
|
Fuel Type |
Diesel |
|
Application |
Specialty Farming (Orchards, Vineyards), Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins 1104D-44TA, Turbo Aftercooled, 8 Valves, Stage III A / Tier 3 |
|
Maximum Horsepower |
110 HP (81 kW) @ 2200 RPM |
|
Maximum Torque |
416 Nm @ 1400 RPM |
|
Torque Backup |
18.9% |
|
Transmission Type |
Mechanical, 12 FWD + 12 REV (Standard), 16+16 with Creeper, 24+24 with Hi-Lo, 32+32 with Hi-Lo & Creeper (Optional) |
|
Clutch |
Synchro Shuttle (Standard), RPS (Optional) |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Rigid, 4WD |
|
Front Differential Lock |
Hydralock / Limited Slip (Optional) |
|
Braking System |
Mechanical Wet Multi-Disc Brakes (Rear, Standard; Front, Optional with Hydralock), Hydraulic Trailer Brake (Optional, LRC Only) |
Wheels & Tyres
|
Specification |
Details |
|
Rear Tyre Size (Min-Max) |
380/75R20 (IR 525 mm) to 380/85R28 (IR 650 mm) |
|
Overall Width (Min-Max) |
1356-1488 mm |
Components & Features
|
Specification |
Details |
|
Emissions System |
Stage III A / Tier 3 |
|
Fuel Tank Capacity |
65 L |
|
PTO Type |
Mechanical (Standard), Electrohydraulic with RPS (Optional), 540/540E RPM (Standard), 540/1000 or Ground Speed (Optional) |
|
Hydraulic System |
Open Centre, Twin Pump, 52+30 L/min (Standard), 60+30 L/min (Optional), 1 Standard Remote Valve, Optional 1 with Float + 1 for Hydraulic Motor, 25 L Oil Take Out (Standard), 30 L (Optional with RPS) |
|
Rear 3-Point Hitch |
Category II, Fixed Ball Ends (Standard), Quick-Hitch Hooks with Mechanical or Hydraulic Top Link (Optional), 2700 kg Lifting Capacity, Optional ELS (Ergonomic Lift System) |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2124 mm (4WD) |
|
Length |
3772-4242 mm (with Front Weights) |
|
Height over ROPS/Cab |
2240 mm (ROPS), 2322-2397 mm (Cab) |
|
Height over Hood |
1290 mm |
|
Shipping Weight |
2800 kg (ROPS), 3000 kg (Cab) |
|
Gross Vehicle Weight |
5250 kg |
|
Operator Platform |
ROPS or 4-Post Cab with Opening Front/Rear Windscreens, Manual A/C, Dust Filter (Cat. 2, Standard), Active Carbon Filter (Cat. 2, Optional), Radio Ready or Radio with Sound System (Optional), 1 Halogen Light (ROPS), 4 Halogen Lights Integrated in Cab Roof (Cab), Optional Beacon Light |
|
Weights |
Front: 6x28 kg or 8x28 kg (Optional with Front Hitch), Rear: 2x45 kg (1 per Wheel) or 4x45 kg (2 per Wheel, Optional) |
