McCormick D-Max 115 T-TRONIC – Utility Tractor for Field and Farm Tasks
Specifications
|
Specification |
Details |
|
Tractor Model |
D-Max 115 T-TRONIC |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
Field and Farm Tasks |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |

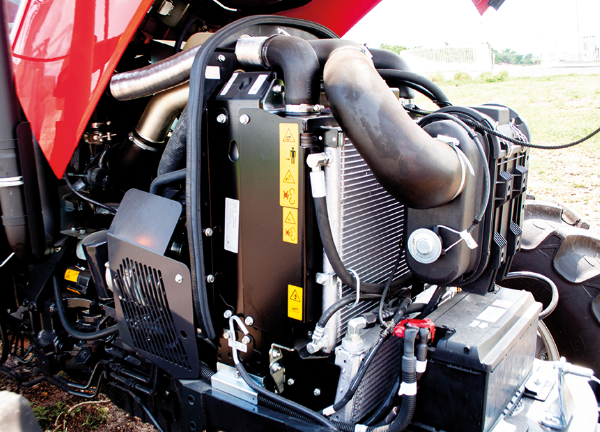

4 cylinders, 4.5 L, FPT NEF4-2V, 4.1 in Bore, 5.2 in Stroke, Turbocharged, Direct-Injection, Water Cooling, Dry Air Filter |
|
Maximum Horsepower |
112 HP (82.5 kW) @ 2200 RPM |
|
Maximum Torque |
374 lb-ft (510 Nm) @ 1250 RPM |
|
Transmission Type |
T-Tronic, 36 FWD + 12 REV (Standard), 48 FWD + 16 REV with Creeper (Optional), Electrohydraulic Power Shuttle, Shuttle Modulation Control |
|
Clutch |
Multi-Disc Wet Clutch, De-Clutch Control Button-Operated |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
Electrohydraulic 4WD Engagement, Max Steering Angle 55° |
|
Differential Locks |
Twin-Lock Electrohydraulic Diff-Locks |
|
Braking System |
Rear Wet Multi-Disc Brakes, Annular Piston, Automatic 4WD Engagement on Braking |
|
Trailer Braking System |
Hydraulic Trailer Brake (Optional), Pneumatic Trailer Brake (Optional) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
14.9R24 |
|
Rear Tyres |
16.9R38 |
Components & Features
|
Specification |
Details |
|
Fuel Tank Capacity |
48 gal (180 L) |
|
Emissions System |
Tier 3, EGR and Aftercooler |
|
PTO Type |
Electrohydraulic Control, Multi-Disc Wet Clutch, Ground Speed PTO (Optional) |
|
PTO Speeds |
540/1000 RPM (Standard), 540/540E RPM (Optional) |
|
PTO Shaft |
1”3/8 (34.9 mm) with 6 Splines (Standard), 1”3/8 (34.9 mm) with 21 Splines (Optional) |
|
Hydraulic System |
Closed-Centre, 29 gpm (110 L/min) Hitch + 10 gpm (38 L/min) Steering, 2 Remote Valves (Standard), 3 (Optional) |
|
Rear Hydraulic Hitch |
Electronically Operated, Draft, Position, Intermix, and Floating Control, Category 2 Three-Point Linkage, Lifting Capacity 9900 lb (4500 kg) with 2 Assistor Rams Ø 50 mm |
|
Front Loader |
Optional, Controlled by Joystick |
|
Height over Cab |
109 in (2770 mm) |
|
Height over ROPS |
109.5 in (2780 mm) |
|
Overall Length with Ballast Weights |
187 in (4755 mm) |
|
Total Weight (without Ballast Weights) |
9240 lb (4200 kg) |
|
Operator Platform |
Deluxe Four-Post Cab with Air-Conditioning, Radio Adaptor, or Iso-Mounted Platform with Rear Folding ROPS, Mechanically Suspended Seat (Standard), Sunroof (Optional) |
|
Onboard Technology |
Digital Dashboard |
|
Front Weights |
6, 8, or 10 x 92.4 lb (42 kg) (Optional) |
|
Rear Weights |
2 or 4 x 99 lb (45 kg) (Optional) |
|
Overall Width |
82 in (2092 mm) |
|
Wheelbase |
100 in (2540 mm) |
|
Ground Clearance |
14.5 in (370 mm) |
