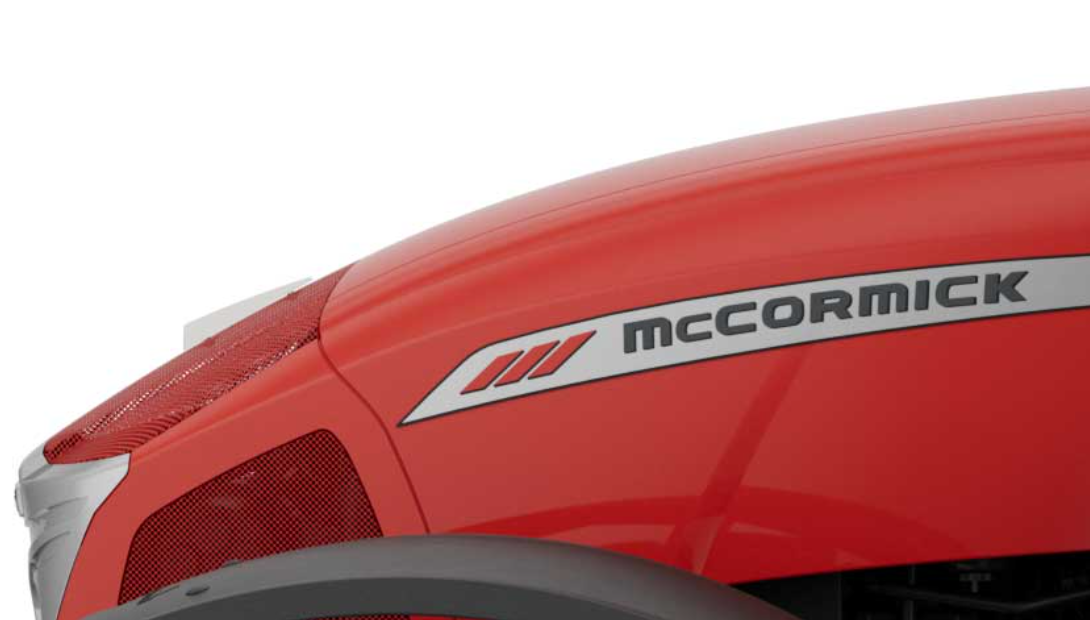

McCormick B90 MAX – Utility Tractor for General Farming
Specifications
|
Specification |
Details |
|
Tractor Model |
B90 MAX |
|
Vehicle Category |
Utility Tractor |
|
Fuel Type |
Diesel |
|
Application |
General Farming, Light to Medium-Duty Fieldwork |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
4 cylinders, 4.4 L, Perkins, 8 Valves, Turbo, Direct Injection |
|
Maximum Horsepower |
82 HP (60 kW) @ 1400 RPM |
|
Maximum Torque |
352 Nm @ 1400 RPM |
|
Transmission Type |
Mechanical (Standard), Electrohydraulic (Optional), 12 FWD + 12 REV with Synchro Shuttle (Standard), 12 FWD + 12 REV with RPS and De-Clutch (Optional) |
|
Minimum Speed |
340 m/h with Creeper (IR 700 mm) |
|
Engine Speed at 30 km/h |
2200 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Front Axle |
4WD without Hydralock or Brakes (Standard), 4WD with Hydralock without Brakes or with Paddy Seals (Optional) |
|
Front Differential Lock |
Hydralock Full Locking Differential (Optional) |
|
Rear Differential Lock |
Mechanical (Standard), Electrohydraulic (Optional) |
|
Braking System |
Ramp Brakes (Rear), Without Front Brakes (Standard), EEC Export Trailer Braking System |
Wheels & Tyres
|
Specification |
Details |
|
Max Rear Tyre Size |
13.6 R38 (IR 750 mm) |
Components & Features
|
Specification |
Details |
|
Emissions System |
Tier 3, Without After-Treatment System |
|
Fuel Tank Capacity |
100 L |
|
PTO Type |
Mechanical, 540/1000 (Standard), 540/540E (Optional), Ground Speed PTO |
|
PTO Speeds |
540/1000 (Standard), 540/540E (Optional) |
|
Hydraulic System |
54 L/min (Synchro Shuttle) or 54 L/min + 30 L/min (RPS) for Rear Hitch & Remote Valves, 24 L/min (Synchro Shuttle) or 30 L/min (RPS) for Steering, 2-4 Mechanical Remote Valves, Free-Flow Return |
|
Rear 3-Point Hitch |
Mechanical, Category II, Fixed Ball Ends (Standard), Quick-Hitch Hooks (Optional), Ergonomic Lift System (Optional), 3100 kg (Standard), 4520 kg with Twin Assistor Rams |
|
Front 3-Point Hitch |
Optional, Category II, 2000 kg Lift Capacity (Assumed) |
|
Front Loader |
McCormick Front Loader, Controlled by Joystick (Optional) |
|
Wheelbase |
2316 mm |
|
Max Height over Cab |
2625 mm (with IR 750 mm Tyres) |
|
Shipping Weight |
3800 kg |
|
Gross Vehicle Weight |
6300 kg |
|
Operator Platform |
Total View Slim Cab Mounted on Silent Blocks, In-Cab Noise Level 83 dB(A), Heat and Ventilation (Standard), Manual Climate Control (Optional), Mechanical Seat (Standard), Comfort Pneumatic Seat (Optional) |
