Specification

Details

Model

Massey Ferguson IDEAL 7

Vehicle Category

Combine Harvester

Fuel Type

Diesel

Application

Grain, soybeans, corn

Specification

Details

Engine

AGCO Power, 7 cylinders, 9.8 L, Stage V

Gross Horsepower

483 HP (355 kW) at 1800 rpm

Transmission Type

2-speed MotionShift, electro-hydraulic clutches, max speed 40 km/h, optional AllDrive powered rear axle, optional differential lock

Specification

Details

Front Tyres

710/70R42, 800/70R38, 900/60R38

Rear Tyres

500/80R28, 620/70R26, 620/70R30, 710/60R30

Specification

Details

Threshing System

Single Helix rotor, 600 mm diameter, 4837 mm length, 280-1160 rpm, 0.83 m² threshing area, 1.44 m² separation area, 2.27 m² total separation area, hydraulic concave adjustment, 4 small grain concaves (13/9.5 mm spacing), 4 large grain concaves (25.5 mm spacing), optional round bar concaves, finger-shaped separation grates, optional large grains kit, asymmetric rotor discharge

Cleaning System

Ciclone triple cleaning fan, IDEALbalance single pan, WavePans double cascade with removable sections, 4.9 m² total sieve area (2.71 m² top sieve, 2.19 m² lower sieve), 7.45 m² total cleaning area, fan speed 150-1350 rpm, electrical sieve adjustment, separate rethreshing

Grain Tank

Streamer 210 (17100 L, 210 l/s) or Streamer 140 (12500 L, 140 l/s), unloading tube lengths 7.6/9.2/10.6 m, hydraulic foldable cover, hydraulic unloader gates, optional adjustable spout, optional spill saver, optional grass-seed unloading kit

Straw Chopper

BaseCut (4 rows, 56 serrated knives) or optional ShortCut (8 rows, 112 serrated knives), dual speed drive (3600/850 rpm), optional chop to drop from cab, optional heavy-duty knives, manual or optional electrical straw deflector adjustment, manual chaff spreader, optional electric chaff spreader, optional ActiveSpread SwingFlow

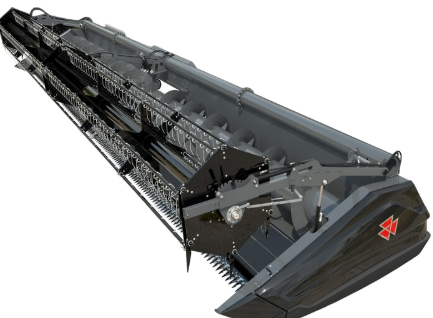

Header

PowerFlow 7.7-10.7 m, Schumacher knife (1220 cuts/min), TerraControl II (table-levelling, ground-contour following, headland management), optional AutoDock (5-second hook-up), 4 spring-loaded feeder house chains, single speed (528 rpm) or optional two-speed (250-525 rpm) belt drive, optional 100 kW or 135 kW fixed speed header drive, optional 135 kW or 220 kW variable speed header drive, manual header pitch (+/- 3°) or optional hydraulic (+/- 6°), 2x70 mm lifting cylinders, optional electric side knives, hydraulic reverse with creep function, optional dust diverter

Fuel Tank Capacity

1000 L or optional 1250 L (diesel), 180 L (AdBlue)

Width

3300-3800 mm (depending on tyre configuration)

Features

Vision cab (5.75 m² glass, 73 dB), standard air-suspended fabric seat or optional deluxe leather seat (heated, cooled, lumbar support), automatic air conditioning, electric/heated rear-view and rear tyre mirrors, standard rear-view camera, optional multiple camera system, optional LED working lights, optional halogen working lights (2 stubble, 2 row finders, 2 rear, 8 cab roof), coming home light, 4-speaker sound system, optional ProSound with subwoofer, 28.5 L cooler, optional side sun visors, PowerFold swingable entry ladder, PowerGrip multifunction lever, soft-touch keypad, 10.4" TechTouch touchscreen terminal, ScrollSwing unloading auger control, automatic crop settings, HarvestPlus cruise modes, headland management, yield and moisture meter, optional IDEALharvest with SmartConnect app, optional MF Guide (NovAtel/Trimble, 2-30 cm accuracy, xFill), optional TaskDoc/Pro, optional live yield mapping, AirSense cooling, DriveCenter power unit, optional 60 L air compressor
