Specification

Details

Model

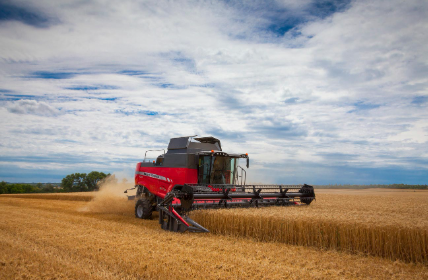

Massey Ferguson Beta 7370

Vehicle Category

Combine Harvester

Fuel Type

Diesel

Application

Grain, soybeans, maize, sunflower, rice

Specification

Details

Engine

AGCO Power, 6 cylinders, 8.4 L, Stage V, DOC+SC+SCR+EGR after-treatment

Gross Horsepower

320-360 HP (235-265 kW) with power boost

Transmission Type

Hydrostatic, 4 gears, optional 4WD rear axle

Specification

Details

Front Tyres

800/65 R32, 650/75 R32, 710/75 R32, 900/60 R32

Rear Tyres

460/70 R24

Specification

Details

Threshing System

High-inertia cylinder (1600 mm width, 600 mm diameter, 430-1210 rpm, 8+8 ballast bars), ABC concave (14° wrap, 120° angle, 12 bars, 0.99 m² area), optional sectional/universal/maize/rice concaves, Multicrop Separator (MCS) Plus (1600 mm width, 600 mm diameter, 8-bar concave, 1.07 m² area, rotating concave system)

Cleaning System

Shaker shoe with long grain pan, high dividers, high-capacity sieves (5.58 m² total area), full-width volumetric blade-type fan (350-1050 rpm, electrical adjustment in cab), optional fan speed reduction (270-840 rpm), returns to cylinder with monitoring

Grain Tank

9000 L capacity, 105 l/s unloading rate, 5 m auger length, 4.45 m unloading height, electrically-operated lids

Straw Chopper

6-row chopper, 88 serrated knives, adjustable, optional electrical deflectors with mirror function, optional twin rotor chaff spreader, optional chopper speed reduction kit for maize

Header

FreeFlow (4.8-7.6 m) or PowerFlow (5.5-7.7 m), Schumacher knife (1220 cuts/min), combined multicoupler, TerraControl II (automatic cutting height control, autolevel table, field pressure), Power Feed roller, table and elevator reverser, automatic reel speed, optional rape auger, optional electric side knives, optional maize/rice/pea and bean kits

Straw Walkers

6 walkers, 4 steps, 4.2 m length, 6.81 m² separation area, 210 mm high permeable steps, reinforced front steps for maize

Fuel Tank Capacity

620 L (diesel), 80 L (AdBlue)

Width

3900 mm (with standard 800/65 R32 tyres)

Length

8910 mm (without table)

Weight

14000 kg

Features

Skyline cab (sound insulation with sound-absorbing glass), air-suspended seat, electrically adjustable heated 2-part mirrors, instructor seat with cooler/storage box, safe cab steps, standard rear-view camera, pre-wired for second camera, TechTouch terminal (touchscreen, adjustable mounting, up to 10 crop settings), PowerGrip multifunction lever, soft-touch keypad, optional moisture sensor, optional yield monitor, optional autoguidance, MF Connect fleet monitoring, optional multimedia system with navigation, optional LED working light pack, optional air compressor
