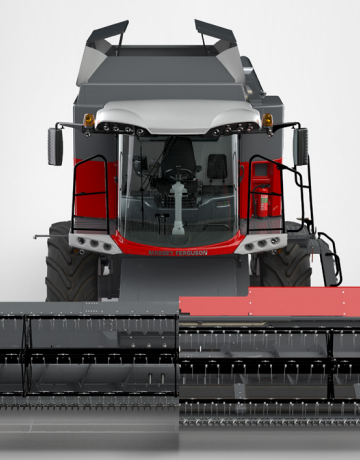

Massey Ferguson Beta 7360 PL – 306 HP Combine Harvester with ParaLevel
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson Beta 7360 PL |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, maize, sunflower, rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power, 6 cylinders, 7.4 L, Stage V, DOC+SC+SCR after-treatment |
|
Gross Horsepower |
276-306 HP (203-225 kW) with power boost |
|
Transmission Type |
Hydrostatic, 4 gears, standard 4WD rear axle, optional 2WD |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
ParaLevel front axle, up to 20% levelling (4WD), 15% (2WD), optional PLi with 30% uphill and 10% downhill levelling |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
800/65 R32, 650/75 R32 |
|
Rear Tyres |
540/65 R24 |
Components & Features
|
Specification |
Details |
|
Threshing System |
High-inertia cylinder (1340 mm width, 600 mm diameter, 380-1100 rpm, 8+8 ballast bars), ABC concave (14° wrap, 120° angle, 12 bars, 0.83 m² area), optional sectional/universal/maize/rice concaves, Multicrop Separator (MCS) Plus (1340 mm width, 600 mm diameter, 8-bar concave, 0.9 m² area, rotating concave system) |
|
Cleaning System |
Shaker shoe with long grain pan, high dividers, high-capacity sieves (4.67 m² total area), full-width volumetric blade-type fan (350-1050 rpm, electrical adjustment in cab), optional fan speed reduction (270-840 rpm), returns to cylinder with monitoring |
|
Grain Tank |
8600 L capacity, 105 l/s unloading rate, 5 m auger length, 4.45 m unloading height, electrically-operated lids |
|
Straw Chopper |
6-row chopper, 72 serrated knives, adjustable, optional electrical deflectors with mirror function, optional twin rotor chaff spreader, optional chopper speed reduction kit for maize |
|
Header |
FreeFlow (4.8-7.6 m) or PowerFlow (5.5-6.8 m), Schumacher knife (1220 cuts/min), combined multicoupler, TerraControl II (automatic cutting height control, autolevel table, field pressure), Power Feed roller, table and elevator reverser, automatic reel speed, optional rape auger, optional electric side knives, optional maize/rice/pea and bean kits |
|
Straw Walkers |
5 walkers, 4 steps, 4.2 m length, 5.73 m² separation area, 210 mm high permeable steps, reinforced front steps for maize |
|
Fuel Tank Capacity |
620 L (diesel), 80 L (AdBlue) |
|
Width |
3550 mm (with standard 800/65 R32 tyres) |
|
Length |
9000 mm (without table) |
|
Weight |
14800-15200 kg (PLi version) |
|
Features |
Skyline cab (sound insulation with sound-absorbing glass), air-suspended seat, electrically adjustable heated 2-part mirrors, instructor seat with cooler/storage box, safe cab steps, standard rear-view camera, pre-wired for second camera, TechTouch terminal (touchscreen, adjustable mounting, up to 10 crop settings), PowerGrip multifunction lever, soft-touch keypad, optional moisture sensor, optional yield monitor, optional autoguidance, MF Connect fleet monitoring, optional multimedia system with navigation, optional LED working light pack, optional air compressor, ParaLevel system |
