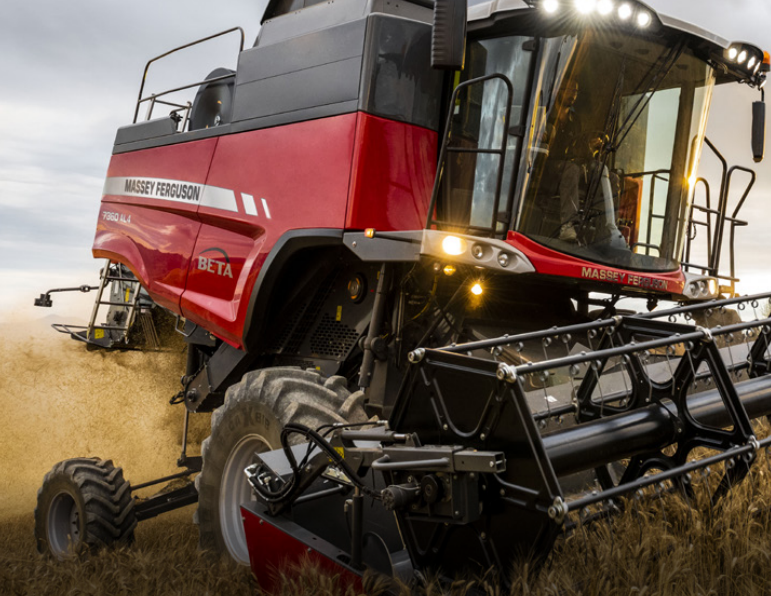

Massey Ferguson Beta 7360 AL4 – 306 HP Combine Harvester with Levelling System
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson Beta 7360 AL4 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, corn, maize, sunflower |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power, 6 cylinders, 7.4 L, Stage V, DOC+SC+SCR after-treatment |
|
Gross Horsepower |
306 HP (225 kW) with power boost |
|
Transmission Type |
Hydrostatic transmission, 130 CC, 4-ratio gearbox, dual displacement 4WD device |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
Levelling system with 4 hydraulic cylinders, up to 38% transversal, 35% uphill, 8% downhill |
|
Brakes |
Disc brakes on final drive side |
Components & Features
|
Specification |
Details |
|
Threshing System |
High-inertia cylinder (1340 mm width, 600 mm diameter, 380-1100 rpm, 8+8 ballast bars), ABC concave (14° wrap, 106° angle, 12 bars, 0.83 m² area), optional sectional/universal/maize concaves, Multicrop Separator (MCS) Plus (1340 mm width, 600 mm diameter, 8-bar concave, 0.9 m² area, rotating concave system) |
|
Cleaning System |
Shaker shoe with long grain pan, high dividers, high-capacity sieves (4.67 m² total area), full-width volumetric blade-type fan (350-1050 rpm, electrical adjustment in cab), returns to cylinder with monitoring |
|
Grain Tank |
8600 L capacity, 105 l/s unloading rate, 5 m auger length, 4.7 m unloading height, electrically-operated lids |
|
Straw Chopper |
Up to 6-row chopper with serrated blades, adjustable, optional chopper speed reduction kit for maize |
|
Header |
FreeFlow (5.4-7.0 m) or PowerFlow (5.5-6.8 m), Schumacher knife (1220 cuts/min), combined multicoupler, TerraControl II (automatic cutting height control, autolevel table, field pressure), Power Feed roller, table and elevator reverser, automatic reel speed, optional maize kit |
|
Straw Walkers |
5 walkers, 4 steps, 4.2 m length, 7.62 m² separation area, 210 mm high permeable steps, reinforced front steps for maize |
|
Width |
3950 mm |
|
Length |
8420-9130 mm |
|
Features |
Skyline cab (sound insulation with sound-absorbing glass), air-suspended seat, electrically adjustable heated mirrors, instructor seat with cooler/storage box, safe cab steps, standard rear-view camera, pre-wired for second camera, TechTouch terminal (touchscreen, adjustable mounting, up to 10 crop settings), PowerGrip multifunction lever, soft-touch keypad, optional moisture sensor, optional yield monitor, MF Connect fleet monitoring, levelling system with proportional valves, 4WD dual displacement system |
