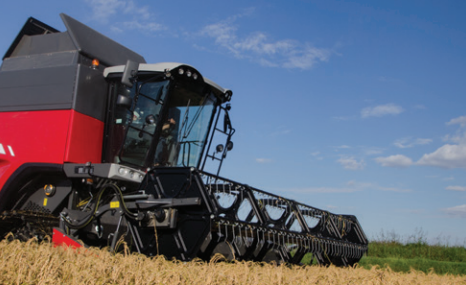

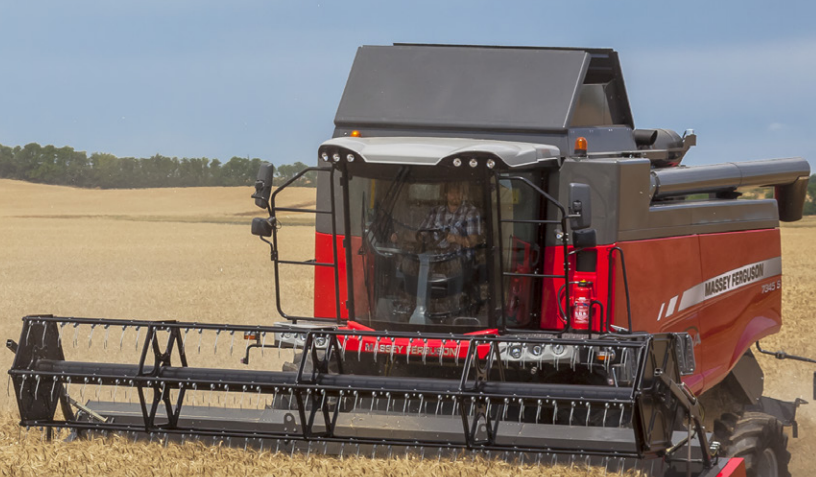

Massey Ferguson Activa S 7345 MCS PL – 260 HP Combine Harvester with ParaLevel
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson Activa S 7345 MCS PL |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, maize, sunflower, rice |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power, 6 cylinders, 7.4 L, Stage V, DOC+SC+SCR after-treatment |
|
Gross Horsepower |
260 HP (192 kW) |
|
Transmission Type |
Hydrostatic, 4 gears, standard 4WD rear axle |
Suspension & Brakes
|
Specification |
Details |
|
Suspension |
ParaLevel front axle, up to 20% levelling (4WD), 15% (2WD) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
650/75 R32, 800/65 R32 |
|
Rear Tyres |
460/70 R24, 540/65 R24 |
Components & Features
|
Specification |
Details |
|
Threshing System |
High-inertia cylinder (1340 mm width, 600 mm diameter, 380-1100 rpm, 8 threshing bars + 8 ballast bars), ABC concave (14° wrap, 120° angle, 12 bars, 0.83 m² area), optional sectional/universal/maize/rice concaves, Multicrop Separator (MCS) Plus (1340 mm width, 600 mm diameter, 8-bar concave, 0.9 m² area, rotating concave system) |
|
Cleaning System |
Shaker shoe with long grain pan, high dividers, high-capacity sieves (4.67 m² total area), full-width volumetric blade-type fan (350-1050 rpm, electrical adjustment in cab), optional fan speed reduction (270-840 rpm), returns to cylinder |
|
Grain Tank |
8600 L capacity, 105 l/s unloading rate, 5 m auger length, 4.5 m unloading height, electrically-operated lids |
|
Straw Chopper |
52 serrated knives, adjustable dimple plate, optional electrical deflectors, optional twin rotor chaff spreader, optional chopper speed reduction kit for maize |
|
Header |
FreeFlow (4.8-7.6 m) or PowerFlow (5.5-6.2 m), Schumacher knife (1254 cuts/min), combined multicoupler, TerraControl II (automatic cutting height control, autolevel table, field pressure, headland management), Power Feed roller, table and elevator reverser, automatic reel speed, optional rape auger, optional electric side knives, optional maize/rice kits |
|
Straw Walkers |
5 walkers, 4 steps, 4.2 m length, 7.62 m² total separation area, 210 mm high permeable steps, reinforced front steps for maize |
|
Fuel Tank Capacity |
620 L (diesel), 80 L (AdBlue) |
|
Width |
3290 mm (with standard 650/75 R32 tyres) |
|
Length |
9070 mm (without table) |
|
Weight |
14500 kg |
|
Features |
Proline cab (sound insulation with sound-absorbing glass), air-suspended seat, electrically adjustable heated mirrors, optional instructor seat with cooler box, safe cab steps, TechTouch 2 terminal (touchscreen, adjustable mounting, up to 10 crop settings), PowerGrip multifunction lever, membrane keypad, optional Ceres 8000i yield monitor and moisture sensor with SD card reader, optional multimedia system with navigation, optional air compressor, optional maize/rice kits, 6 H9 working lights, optional row finders/stubble/rear lights, ParaLevel system |
