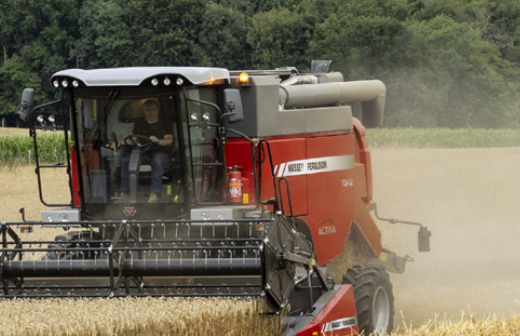

Massey Ferguson Activa 7343 – 226 HP Combine Harvester with 5 Straw Walkers
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson Activa 7343 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, maize |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power, 6 cylinders, 7.4 L, Stage V, DOC+SC+SCR after-treatment |
|
Gross Horsepower |
226 HP (166 kW) |
|
Transmission Type |
Electronically controlled hydrostatic, 3 gears, optional 4WD |
Suspension & Brakes
|
Specification |
Details |
|
Brakes |
Disc type |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
620/75 R30 |
|
Rear Tyres |
400/70-20 |
Components & Features
|
Specification |
Details |
|
Threshing System |
High-inertia cylinder (1340 mm width, 600 mm diameter, 8 rasp bars), ABC concave (120° wrap, 12 bars, 2 bars in module, 3 positions), optional sectional maize/rice concaves, optional Multi Crop Separator (MCS) |
|
Cleaning System |
Shaker shoe with long grain pan, high dividers, high-capacity sieves (4.67 m² sieving area), volumetric fan (350-1050 rpm), optional electric sieves, optional small seeds kit |
|
Grain Tank |
5200 L standard or 6500 L optional capacity, 72 l/s standard or 85 l/s optional unloading rate, 4 m auger length, 4.2 m unloading height |
|
Straw Chopper |
Optional multi-adjustable serrated blade chopper, optional electrical deflectors, optional chaff spreader, optional maize kit |
|
Header |
FreeFlow (4.8-7.6 m) or PowerFlow (up to 6.2 m), Schumacher knife (1254 cuts/min), combined multicoupler, optional AutoLevel table control with cutting height control, optional header lateral flotation (GSAX), optional rape auger, optional electric side knives, optional pea and bean kit |
|
Straw Walkers |
5 walkers, 4 steps, 4.2 m length, 6.72 m² total separation area, 210 mm high permeable steps, reinforced front steps for maize |
|
Fuel Tank Capacity |
450 L (diesel), 80 L (AdBlue) |
|
Features |
Comfort cab with air conditioning, heating, Agritronic terminal, seat-mounted armrest, multi-function lever, air-suspended seat, passenger seat, adjustable heated mirrors, header height control, shaft speed monitor, hectare counter, grain loss monitor, optional camera monitor, optional yield meter, optional moisture sensor, optional refrigerator, optional air compressor, optional additional work lights |
