Specification

Details

Model

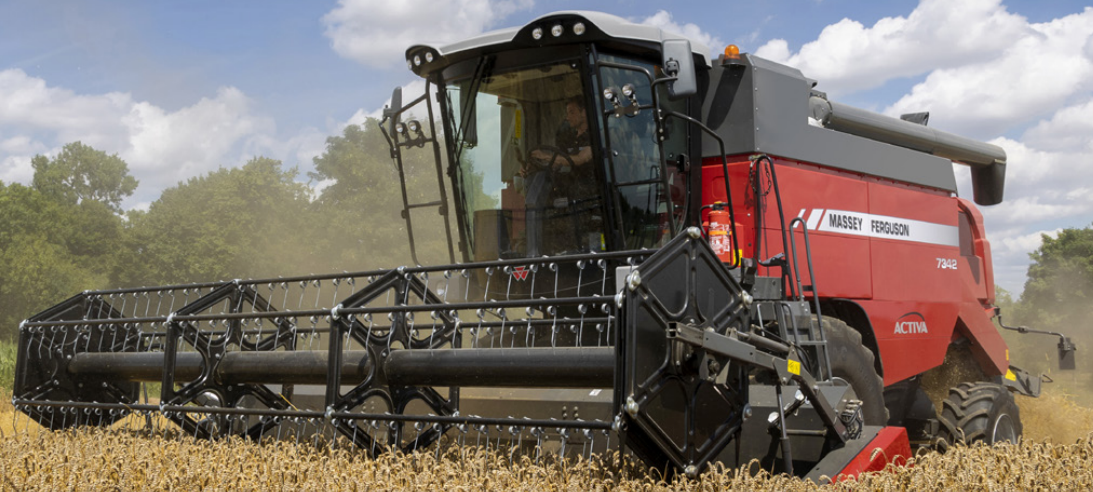

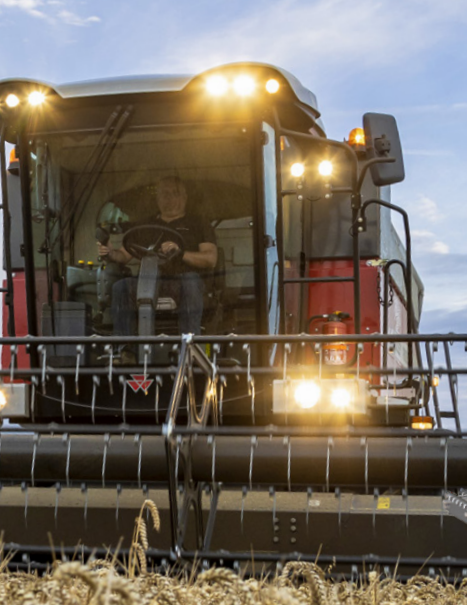

Massey Ferguson Activa 7342

Vehicle Category

Combine Harvester

Fuel Type

Diesel

Application

Grain, soybeans, maize, sunflower

Specification

Details

Engine

AGCO Power, 4 cylinders, 4.9 L, Stage V, DOC+SC+SCR after-treatment

Gross Horsepower

185 HP (136 kW)

Transmission Type

Electronically controlled hydrostatic, 3 gears, optional 4WD

Specification

Details

Brakes

Disc type

Specification

Details

Front Tyres

620/75 R30

Rear Tyres

400/70-20

Specification

Details

Threshing System

High-inertia cylinder (1340 mm width, 600 mm diameter, 8 rasp bars), ABC concave (120° wrap, 12 bars, 2 bars in module, 3 positions), optional sectional maize/rice concaves

Cleaning System

Shaker shoe with long grain pan, high dividers, high-capacity sieves (4.67 m² sieving area), volumetric fan (350-1050 rpm), optional electric sieves, optional small seeds kit

Grain Tank

5200 L capacity, 72 l/s unloading rate, 4 m auger length, 4.2 m unloading height

Straw Chopper

Optional multi-adjustable serrated blade chopper, optional electrical deflectors, optional chaff spreader, optional maize kit

Header

FreeFlow (4.8-6.0 m), Schumacher knife (1254 cuts/min), combined multicoupler, optional AutoLevel table control with cutting height control, optional header lateral flotation (GSAX), optional pea and bean kit

Straw Walkers

5 walkers, 4 steps, 4.2 m length, 6.72 m² total separation area, 210 mm high permeable steps, reinforced front steps for maize

Fuel Tank Capacity

450 L (diesel), 80 L (AdBlue)

Features

Comfort cab with air conditioning, heating, Agritronic terminal, seat-mounted armrest, multi-function lever, air-suspended seat, passenger seat, adjustable heated mirrors, header height control, shaft speed monitor, hectare counter, grain loss monitor, optional camera monitor, optional yield meter, optional moisture sensor, optional refrigerator, optional air compressor, optional additional work lights
