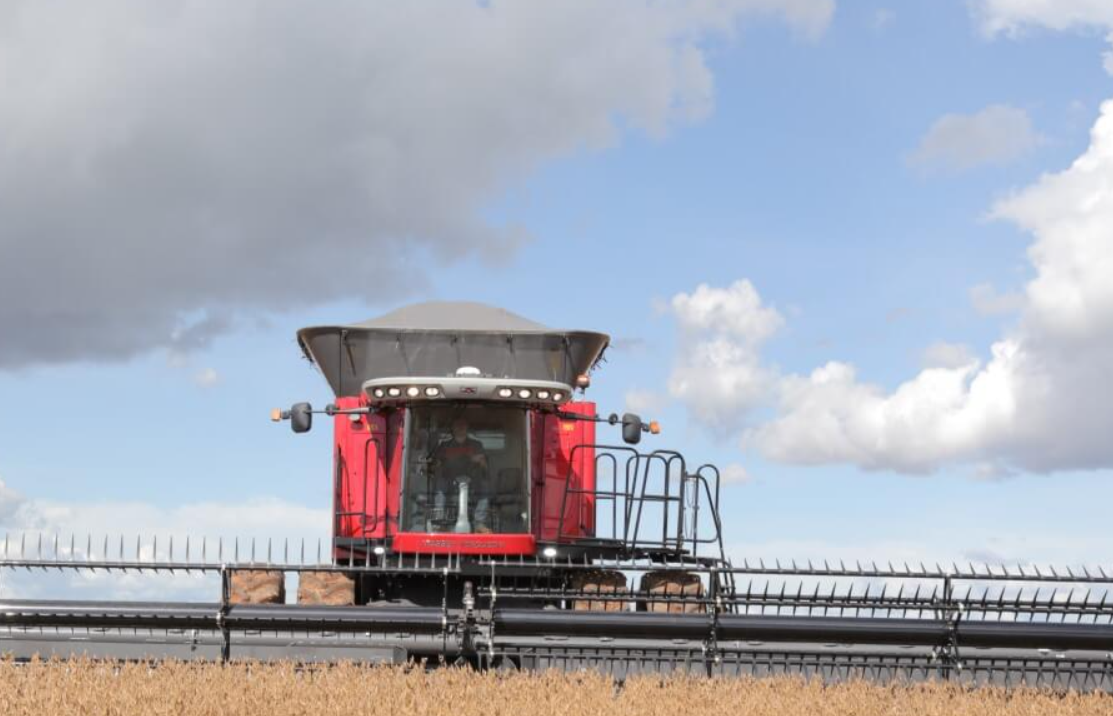

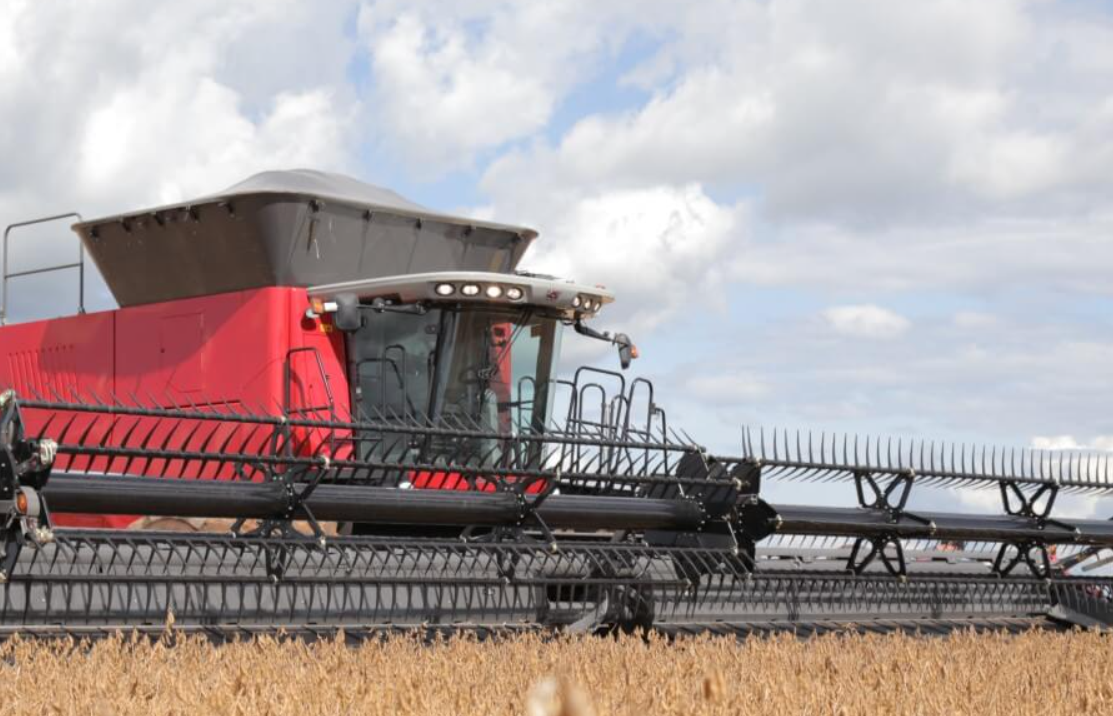

Massey Ferguson 9795 F – 450 HP Axial Combine Harvester
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 9795 F |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, maize |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power 9.8 AT3, 7 cylinders, 9.8 L, Turbo Intercooler, SCR emissions technology |
|
Gross Horsepower |
450 HP (331 kW) |
|
Transmission Type |
Hydrostatic, 4 gears with 8 speeds (Low/High via console key) |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
Single: 900/60 R32; Dual: 520/85 R42 |
|
Rear Tyres |
600/65 R28 (2WD/4WD) |
Components & Features
|
Specification |
Details |
|
Threshing System |
Trident Axial Flow (single rotor), fine or coarse wire/round bar concave, 1.36 m² threshing area, 2.2 m² separation area, 800 mm rotor diameter, 3556 mm rotor length, belt and variable pulley drive (2 speeds: 264-709 rpm low, 460-1235 rpm high), electro-hydraulic rotor reverser |
|
Cleaning System |
3-stage cleaning, 0.64 m² pre-cleaning area, 2.96 m² upper sieve area, 2.50 m² lower sieve area, 6.10 m² total area, transverse fan (457.2 mm diameter, 916-1336 rpm) |
|
Grain Tank |
10570 L capacity, 150 l/s unloading rate, 7.4 m unloading tube length, 4.35 m unloading tube height |
|
Residue Handling |
Optional 2-speed chopper, optional rotor residue spreader, optional sieve residue spreader, optional straw spreader |
|
Header |
Draper (10.6 m, 12.2 m), Corn (up to 18 rows), 1408 mm feeder channel width, 4-chain feeder with bolted slats, standard variable speed feeder, electro-hydraulic reverser, standard electro-hydraulic height and tilt control, standard stone trap, proportional reel speed control |
|
Fuel Tank Capacity |
870 L (diesel), 80 L (AdBlue) |
|
Width |
5.23 m (outer tyre width, dual 520/85 R42) |
|
Track Width |
2.53 m (inner tyre width, dual 520/85 R42) |
|
Length |
9070 mm |
|
Max Height |
5.10 m (dual 520/85 R42), 3.80 m (transport) |
|
Weight |
23340 kg (with 35’ platform), 20210 kg (without platform) |
|
Features |
Deluxe cab (3.4 m³, 11 work lights, LD console, C2100 monitor), V-Cool cooling system, optional FieldStar® II productivity monitor, standard Auto Guide 3000 preparation (decimetric or centimetric), hydraulic system (piston pump, variable displacement, 85.2 L reservoir), 3.02–3.64 m (2WD) or 3.07–3.68 m (4WD) fixed rear axle |
