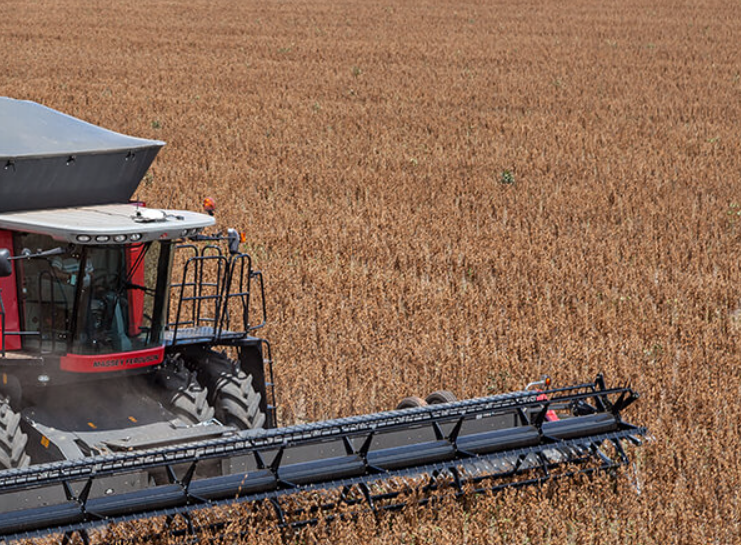

Massey Ferguson 9595 – 360 HP Axial Combine Harvester
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 9595 |
|
Vehicle Category |
Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, soybeans, maize |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power 8.4 AW3, 6 cylinders, 8.4 L, Turbo Intercooler, SCR emissions technology |
|
Gross Horsepower |
360 HP (264 kW) |
|
Transmission Type |
Hydrostatic, 4 gears and 4 speeds |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
Single: 800/65 R32 or 20.8-38 14PR (Diagonal); Dual: 520/85 R38 |
|
Rear Tyres |
23.1x26 12PR |
Components & Features
|
Specification |
Details |
|
Threshing System |
Trident Axial Flow (single rotor), fine or coarse wire/round bar concave, 1.20 m² threshing area, 1.92 m² separation area, 700 mm rotor diameter, 3556 mm rotor length, belt and variable pulley drive (2 speeds: 264-709 rpm low, 460-1235 rpm high), electro-hydraulic rotor reverser |
|
Cleaning System |
3-stage cleaning, 0.6 m² pre-cleaning area, 2.44 m² upper sieve area, 2.06 m² lower sieve area, 5.10 m² total area, transverse fan (457.2 mm diameter, 916-1336 rpm) |
|
Grain Tank |
8800 L capacity, 88 l/s unloading rate, 6.4 m unloading tube length, 3.95 m unloading tube height |
|
Residue Handling |
Optional 2-speed chopper, optional rotor residue spreader, optional sieve residue spreader, optional straw spreader |
|
Header |
Draper (7.6 m, 9.1 m), Corn (up to 13 rows), 1121 mm feeder channel width, 3-chain feeder with bolted slats, optional variable speed feeder, electro-hydraulic reverser, standard electro-hydraulic height and tilt control, standard stone trap, proportional reel speed control |
|
Fuel Tank Capacity |
643 L (diesel), 80 L (AdBlue) |
|
Width |
4.66 m (outer tyre width, dual 20.8 R38L) |
|
Track Width |
2.06 m (inner tyre width, dual 20.8 R38L) |
|
Length |
13.24 m (with 30’ platform) |
|
Max Height |
5.05 m (dual 20.8 R38L), 3.90 m (transport) |
|
Weight |
20735 kg (with 30’ platform), 17985 kg (without platform) |
|
Features |
Deluxe cab (3.4 m³, 11 work lights, LD console, C2100 monitor), V-Cool cooling system, optional FieldStar® II productivity monitor, optional Auto Guide 3000 (decimetric or centimetric), hydraulic system (piston pump, variable displacement, 85.2 L reservoir), 3.15 m fixed rear axle |
