Massey Ferguson 9563 SMART 2WD (8+8) - QUADRA PTO – 2WD Agricultural Tractor by Massey Ferguson

Images:

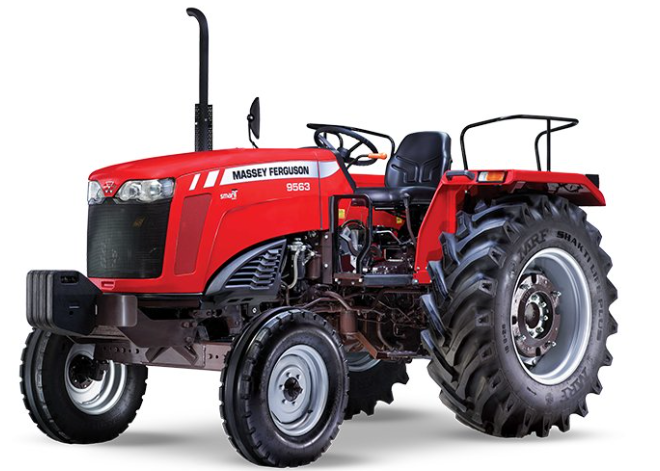

1

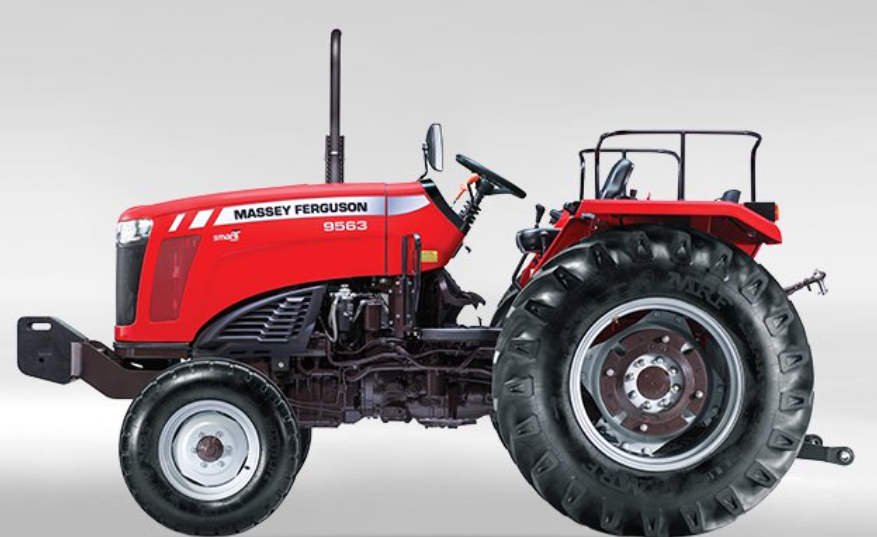

2

Specifications

Specification	Details
Model	Massey Ferguson 9563 SMART 2WD (8+8) - QUADRA PTO
Overall Length	3,917 mm
Overall Width	1,877 mm
Wheelbase	1,980 mm
Total Weight	2,560 kg
Fuel Type	Diesel
Application	2WD Agricultural Tractor
Fuel Tank Capacity	65 L
Max Speed	31.3 km/h @ 2200 RPM

Frame & Drivetrain

Specification	Details
Cylinders	3
Cubic Capacity	2,590 cc
Fuel Injection Pump	Common Rail Injection System
Power Range	44.1 kW (63 hp)
Clutch Type	Dual Clutch
Transmission Type	Comfimesh
Number of Speeds	8 Forward + 8 Reverse
Forward Speed	31.3 km/h @ 2200 RPM

Suspension & Brakes

Specification	Details
Brake Type	Oil Immersed Brake
Steering Type	Power Steering

Wheels & Tyres

Specification	Details
Tyre Dimensions	19.05 cm x 40.64 cm (7.5 x 16) front, 42.93 cm x 71.12 cm (16.9 x 28) rear

Components & Features

Feature	Details
PTO Type	Quadra PTO, six-splined shaft
PTO Speed	540 RPM @ 1789 ERPM
Hydraulics Lifting Capacity	2,500 kgf
Additional Features	SMART head lamps, SMART key, SMART cluster, mat foot step, glass heat deflectors, auxiliary pump, spool valve, bumper & front weight, rear wheel weight - 35 kg (each side)

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
