Massey Ferguson 9563 SMART 2WD (12+4) - QUADRA PTO – 2WD Agricultural Tractor by Massey Ferguson

Images:

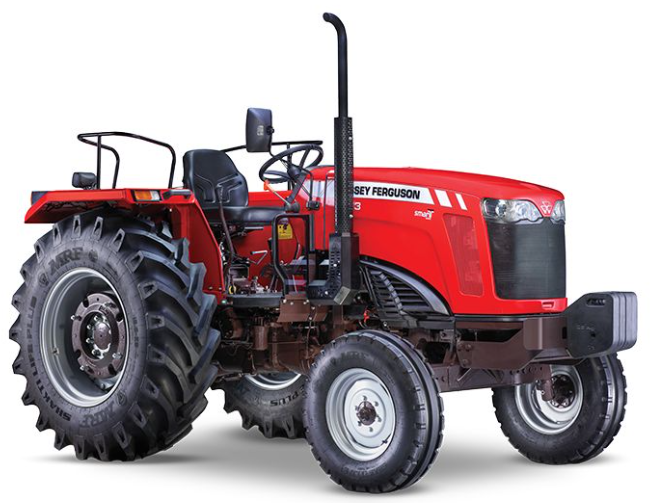

1

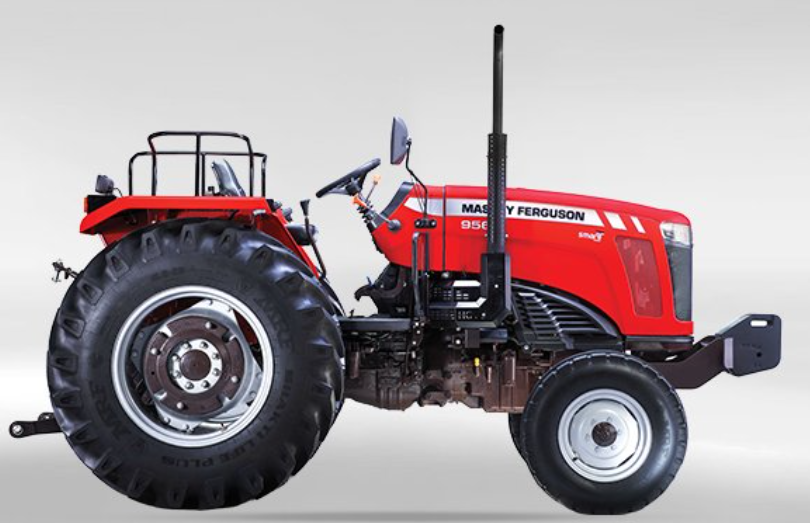

2

Specifications

Specification	Details
Model	Massey Ferguson 9563 SMART 2WD (12+4) - QUADRA PTO
Overall Length	3,439 mm
Overall Width	1,877 mm
Wheelbase	1,980 mm
Total Weight	2,340 kg
Fuel Type	Diesel
Application	2WD Agricultural Tractor
Fuel Tank Capacity	65 L
Max Speed	31.3 km/h @ 2200 RPM

Frame & Drivetrain

Specification	Details
Cylinders	3
Cubic Capacity	2,590 cc
Fuel Injection Pump	Common Rail Injection System
Power Range	44.1 kW (63 hp)
Clutch Type	Dual Clutch
Transmission Type	Partial Synchro Mesh
Number of Speeds	12 Forward + 4 Reverse
Forward Speed	31.3 km/h @ 2200 RPM

Suspension & Brakes

Specification	Details
Brake Type	Oil Immersed Brake
Steering Type	Power Steering

Wheels & Tyres

Specification	Details
Tyre Dimensions	19.05 cm x 40.64 cm (7.5 x 16) front, 42.93 cm x 71.12 cm (16.9 x 28) rear

Components & Features

Feature	Details
PTO Type	Quadra PTO, six-splined shaft
PTO Speed	540 RPM @ 1789 ERPM
Hydraulics Lifting Capacity	2,500 kgf
Additional Features	SMART head lamps, SMART key, SMART cluster, mat foot step, glass heat deflectors, auxiliary pump, spool valve, rear wheel weight - 35 kg (each side)
