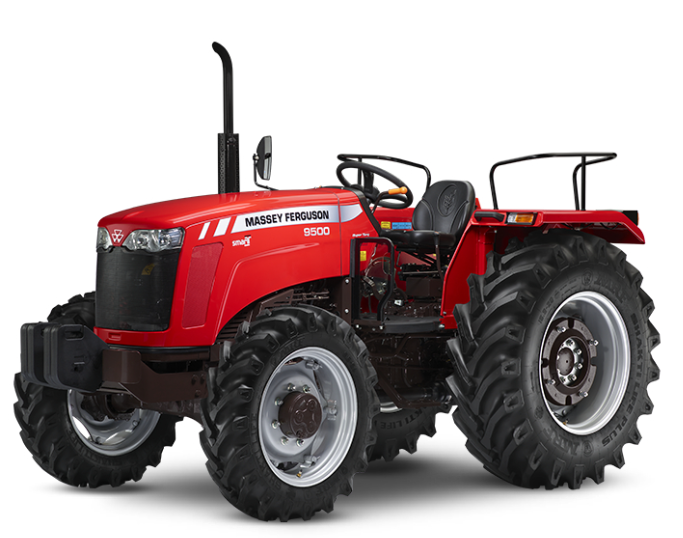

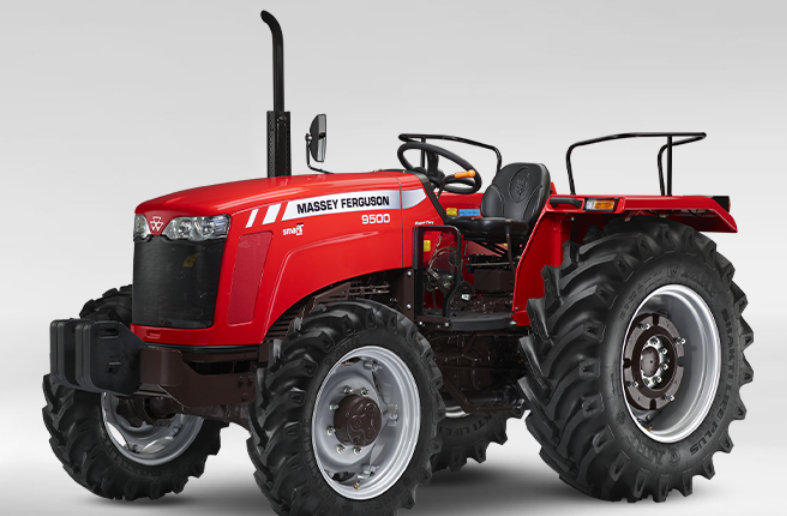

Massey Ferguson 9500 Smart 4WD – 4WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 9500 Smart 4WD |
|
Vehicle Category |
4WD Tractor |
|
Overall Length |
3890 mm |
|
Overall Width |
1855 mm |
|
Overall Height |
2310 mm |
|
Wheelbase |
1972 mm |
|
Total Weight |
2740 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
70 L |
|
Max Speed |
30.57 km/h |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS / Water cooled |
|
Cylinders |
3 |
|
Cubic Capacity |
2700 cc |
|
Fuel Injection Pump |
Direct injection system |
|
Clutch Type |
Dual Clutch |
|
Transmission Type |
Constant Mesh |
|
Number of Speeds |
12 Forward + 4 Reverse |
|
Power Range |
36.41 kW (50 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brake |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
9.5 x 24 (24.13 cm x 60.96 cm) Front, 16.9 x 28 (42.93 cm x 71.12 cm) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live PTO, Single Speed |
|
PTO Speed |
540 RPM @ 1789 ERPM |
|
Hydraulics Lifting Capacity |
2500 kgf |
|
Accessories |
SMART key, SMART cluster, Mat foot step, Glass heat deflectors, Auxiliary pump, Front weights (4 nos), spool valve, Hitch rail |
