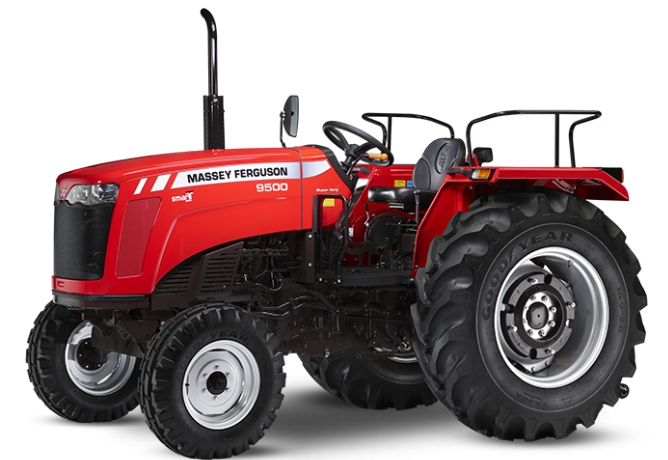

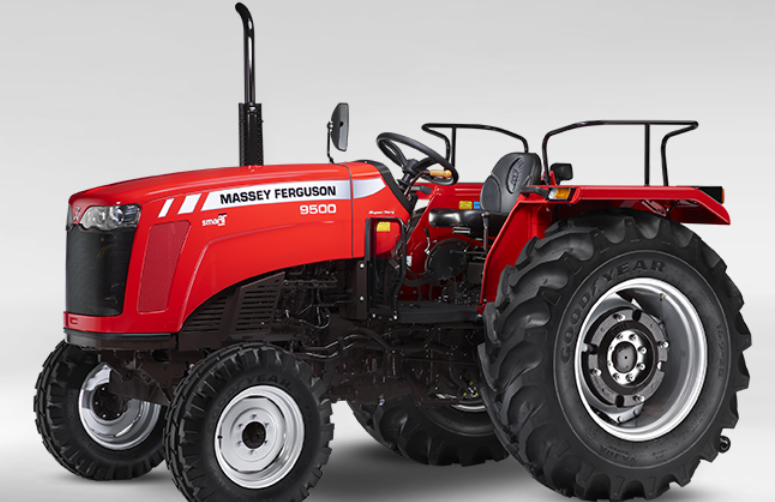

Massey Ferguson 9500 Smart 2WD – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 9500 Smart 2WD |
|
Overall Length |
3,439 mm |
|
Overall Width |
1,877 mm |
|
Wheelbase |
1,980 mm |
|
Total Weight |
2,285 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
70 L |
|
Max Speed |
30.57 km/h @ 2150 RPM |
Frame & Drivetrain
|
Specification |
Details |
|
Cylinders |
3 |
|
Cubic Capacity |
2,700 cc |
|
Fuel Injection Pump |
Direct injection system |
|
Power Range |
36.41 kW (50 hp) |
|
Clutch Type |
Dual Clutch |
|
Transmission Type |
Partial Synchro Mesh |
|
Number of Speeds |
12 Forward + 4 Reverse |
|
Forward Speed |
30.57 km/h @ 2150 RPM |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil Immersed Brake |
|
Steering Type |
Power Steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
19.05 cm x 40.64 cm (7.5 x 16) front, 42.93 cm x 71.12 cm (16.9 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Multi Speed PTO, six spline shaft |
|
PTO Speed |
540 RPM @ 1789 ERPM |
|
Hydraulics Lifting Capacity |
2,500 kgf |
|
Features |
SMART head lamps, SMART key, SMART cluster, mat foot step, glass heat deflectors, auxiliary pump, spool valve |
