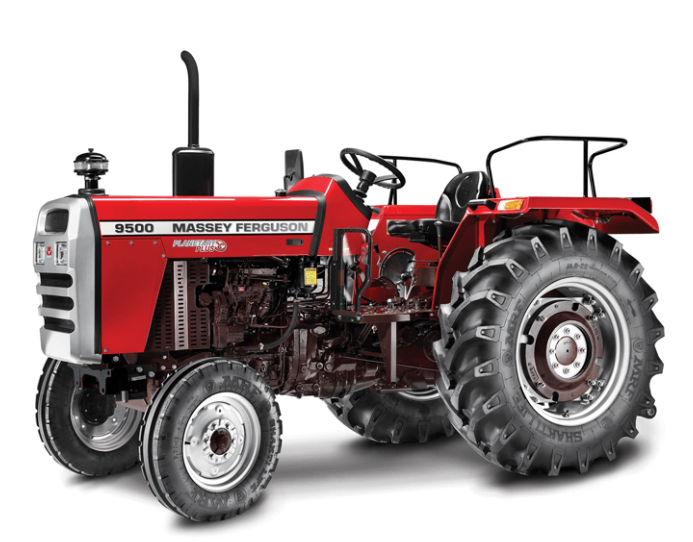

Massey Ferguson 9500 E – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 9500 E |
|
Overall Length |
3,750 mm |
|
Overall Width |
1,878 mm |
|
Overall Height |
2,280 mm |
|
Wheelbase |
1,970 mm |
|
Total Weight |
2,310 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
60 L |
|
Max Speed |
35.8 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS SJ327.1 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2,700 cc (2.70L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
36.76 kW (50 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Comfimesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
35.8 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
19.05 cm x 40.64 cm (7.5 x 16) front, 37.85 cm x 71.12 cm (14.9 x 28) rear |
|
Optional Tyre Dimensions |
19.05 cm x 40.64 cm (7.5 x 16) front, 42.93 cm x 71.12 cm (16.9 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Qudra PTO |
|
PTO Speed |
540 RPM @ 1790 ERPM |
|
Hydraulics Lifting Capacity |
2,050 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-1 and CAT-2 balls (Combi Ball) |
|
Electricals |
12 V 88 Ah Battery, 12 V 35 A Alternator |
|
Features |
Asli side shift, auxiliary pump with spool valve, glass heat deflectors, company fitted hitch |
