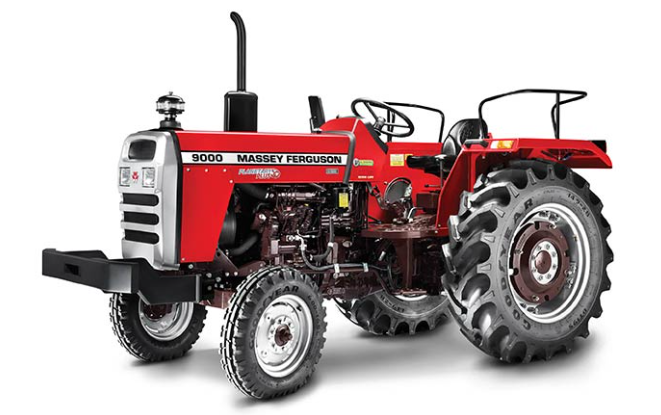

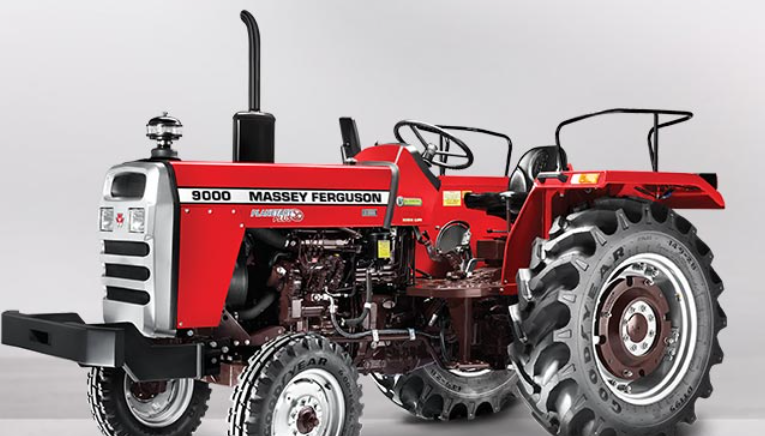

Massey Ferguson 9000 Planetary Plus – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 9000 Planetary Plus |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
3450 mm |
|
Overall Width |
1800 mm |
|
Overall Height |
2235 mm |
|
Wheelbase |
1980 mm |
|
Total Weight |
2215 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
60 L |
|
Max Speed |
34.8 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS SJ327 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2700 cc (2.70L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Dual |
|
Transmission Type |
Comfimesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Power Range |
36.76 kW (50 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
6.00 x 16 (15.24 cm x 40.64 cm) Front, 14.9 x 28 (37.85 cm x 71.12 cm) Rear; Optional: 7.5 x 16 (19.05 cm x 40.64 cm) Front, 16.9 x 28 (42.93 cm x 71.12 cm) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Qudra PTO |
|
PTO Speed |
540 RPM @ 1790 ERPM |
|
Hydraulics Lifting Capacity |
2050 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, Links fitted with CAT-1 and CAT-2 balls (Combi Ball) |
|
Electricals |
12 V 88 Ah Battery, 12 V 35 A Alternator |
|
Accessories |
Asli side shift |
|
Optional Accessories |
Auxiliary pump, oil pipe kit |
