Massey Ferguson 7235 DI – 2WD Agricultural Tractor by Massey Ferguson

Images:

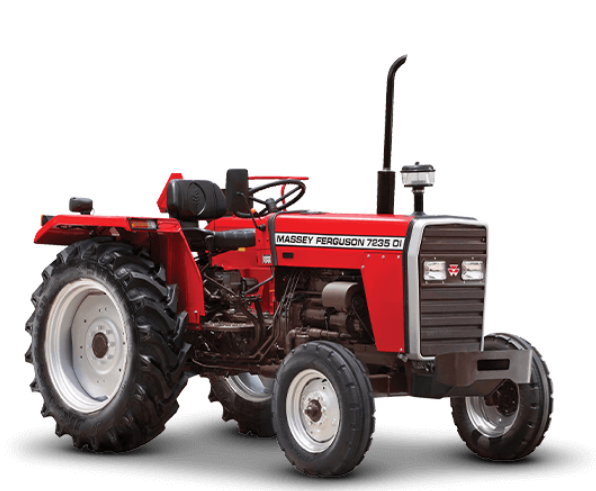

1

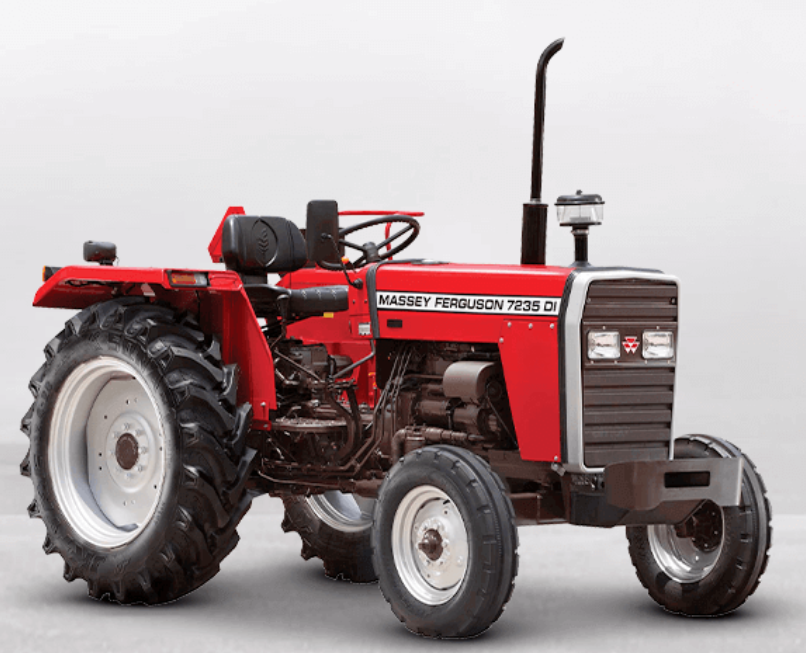

2

Specifications

Specification	Details
Tractor Model	Massey Ferguson 7235 DI
Vehicle Category	2WD Tractor
Overall Length	2826 mm
Overall Width	1648 mm
Wheelbase	1925 mm
Total Weight	1770 kg
Fuel Type	Diesel
Application	2WD Agricultural Tractor
Fuel Tank Capacity	47 L
Max Speed	30.84 km/h

Frame & Drivetrain

Specification	Details
Engine Make / Type	SIMPSONS / Water cooled
Cylinders	3
Cubic Capacity	2270 cc
Fuel Injection Pump	Inline
Clutch	Single
Number of Speeds	8 Forward + 2 Reverse
Power Range	24.61 kW (35 hp)

Suspension & Brakes

Specification	Details
Brake Type	Multi disc oil immersed brakes
Steering Type	Manual Steering & Power steering - Optional

Wheels & Tyres

Specification	Details
Front Tyres	15.24 cm x 40.64 cm (6x16)
Rear Tyres	34.54 cm x 71.12 cm (13.6x28), 31.49 cm x 71.12 cm (12.4x28)

Components & Features

Specification	Details
PTO Type	Live
PTO Speed	540 RPM & 1000 RPM - Optional
Hydraulic Lift Capacity	1200 kgf
Accessories	Oil pipe kit, chain stabilizer, mobile charger, water bottle holder, drawbar

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
