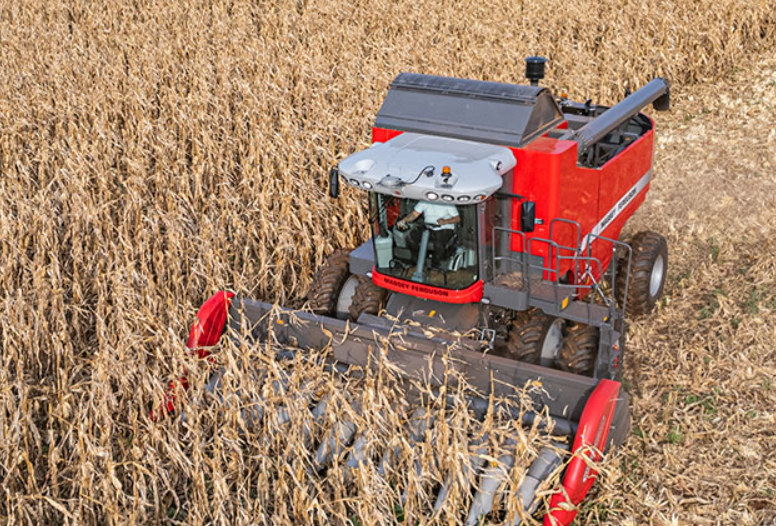

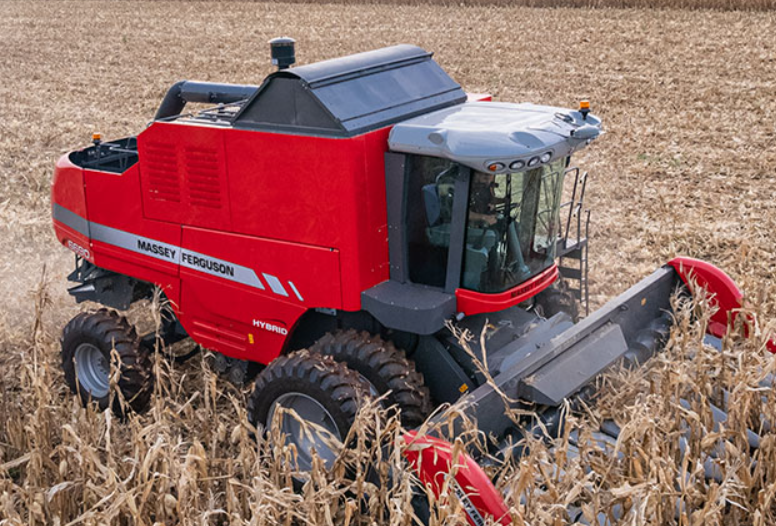

Massey Ferguson 6690HD – 262 HP Hybrid Combine Harvester
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 6690HD |
|
Vehicle Category |
Hybrid Combine Harvester |
|
Fuel Type |
Diesel |
|
Application |
Grain, rice, corn, soybeans |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
AGCO Power 7.4, 6 cylinders, 7.4 L, iEGR emissions technology |
|
Gross Horsepower |
262 HP |
|
Transmission Type |
Heavy Duty hydrostatic |
Wheels & Tyres
|
Specification |
Details |
|
Front Tyres |
Single: 30.5L32-R1; Dual: 18.4-38 R1 |
|
Rear Tyres |
Single: 18.4-26-R1; Dual: 18.4-26 R1 |
Components & Features
|
Specification |
Details |
|
Threshing System |
High-inertia cylinder (1270 mm width, 600 mm diameter, 8 tooth bars for rice or 8 rasp bars for grains, 430-1260 rpm), concave (teeth for rice, bars for grains, universal for multiculture, 117° wrap, 0.8 m² area, 2 rows teeth/11 fine or 13 coarse bars), hydraulic variator |
|
Separation System |
2 helical rotors (470 mm diameter, 3500 mm length, 510 rpm, belt-driven), 4 separation grates with directional deflectors, 128° grate wrap, 3.10 m² grate flow area, 10.2 m² radial separation area, 13.3 m² total separation area |
|
Cleaning System |
Double cascade, upper sieve (adjustable scales, 1.58 x 1.20 m with 2 x 2.4 m extension, 1.9 m² or 2.4 m² with extension), lower sieve (adjustable scales, 1.55 x 1.2 m, 1.86 m²), total cleaning area 4.26 m², centrifugal fan (2 x 510 mm width, 460 mm diameter, 600-1300 rpm, electric variator control from cab), gravity tailings return |
|
Grain Tank |
7000 L capacity, 86 l/s unloading rate, 4.96 m tube height, 4.56 m spout height, tower discharge system, in-cab controlled grain tank extension |
|
Residue Handling |
Optional chopper (rotating and fixed counter-knives, belt-driven), optional spreader (for 20 and 23 ft platforms, belt-driven) |
|
Header |
Rigid (rice, 6.1 m, 7.0 m), Flexible (grains, 6.1 m, 7.0 m, 7.6 m), Draper (7.6 m), Corn (up to 13 lines, 45 cm spacing), basic automatic height and leveling control (grain and multiculture models), 8° lateral tilt |
|
Fuel Tank Capacity |
470 L (diesel) |
|
Width |
3.763 m (single 30.5L32-R1), 4.734 m (dual 18.4-38 R1) |
|
Track Width |
3.40 m (front track) |
|
Length |
7.45 m (without platform) |
|
Max Height |
4.52 m (30.5L32-R1), 4.00 m (transport) |
|
Weight |
13986 kg |
|
Features |
C1000 monitor, crop loss sensor, optional Pro Sense productivity monitor (via dealer network), optional Auto-Guide 3000 preparation, optional Auto-Guide 3000 decimetric, 25% increased slope capacity with Heavy Duty transmission, in-cab controlled grain tank extension |
