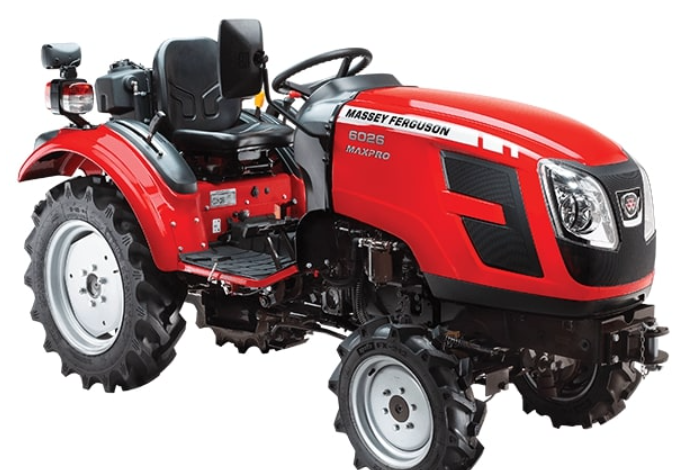

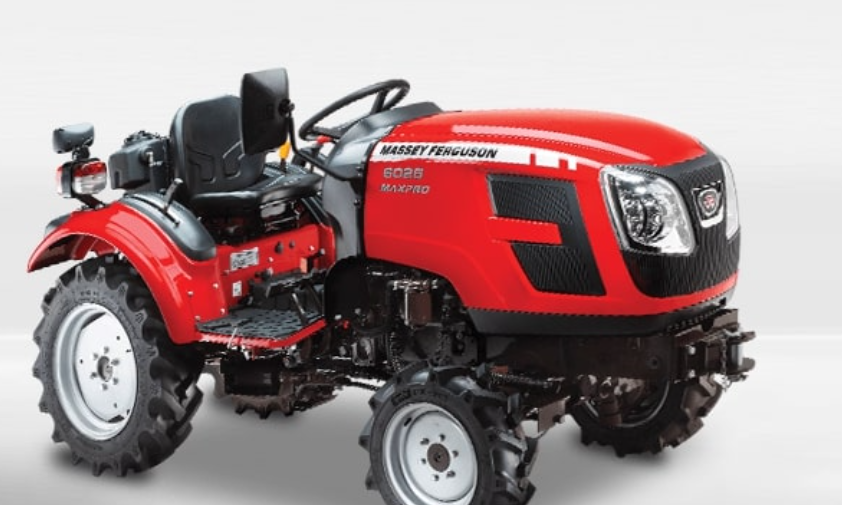

Massey Ferguson 6026 MaxPro (Wide Track) – 4WD Mini Tractor by Massey Ferguson
 1.png)
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 6026 MaxPro (Wide Track) |
|
Overall Length |
2,960 mm |
|
Overall Width |
1,100 mm |
|
Overall Height |
1,315 mm |
|
Wheelbase |
1,550 mm |
|
Total Weight |
990 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Mini Tractor |
|
Fuel Tank Capacity |
23 L |
|
Max Speed |
24.9 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
MVS3L2-T3CC10 |
|
Cylinders |
3 |
|
Cubic Capacity |
1,318 cc (1.31L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
19.1 kW (26 hp) |
|
Clutch Type |
Single diaphragm |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
9 Forward + 3 Reverse |
|
Forward Speed |
24.9 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
17.78 cm x 30.48 cm (180/85 D 12) front, 21.08 cm x 50.80 cm (8.3 x 20) rear |
|
Optional Tyre Dimensions |
High lug tyres |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, Two speed PTO |
|
PTO Speed |
540 RPM @ 2322 ERPM, 750 RPM @ 2450 ERPM |
|
Hydraulics Lifting Capacity |
739 kgf |
|
Three-point Linkage and Controls |
CAT-1, Draft with Auto Sense, position and response control |
|
Electricals |
12 V 65 Ah Battery, 12 V 65 A Alternator |
|
Features |
Push type pedals, fixed drawbar, SMART key, 7-pin trailer socket, front towing hook, mobile charger, linkage drawbar CAT 1N |
|
Optional Features |
Spool valve - single, high lug tyres |
