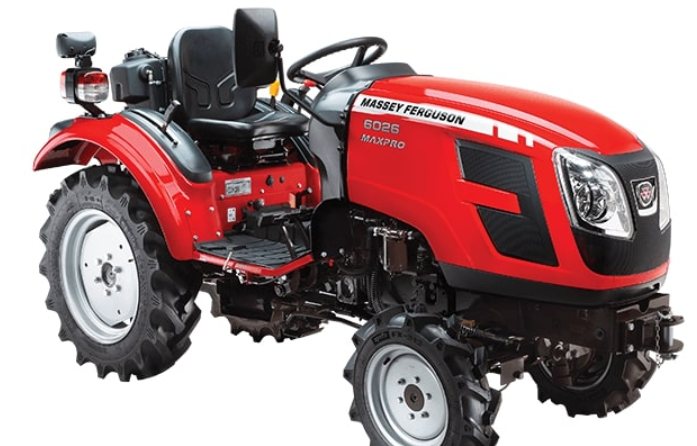

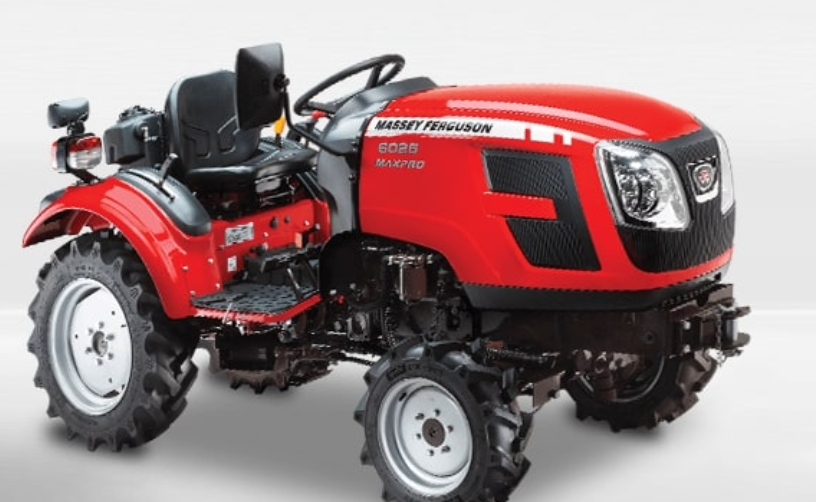

Massey Ferguson 6026 MaxPro (Narrow Track) – 4WD Agricultural Tractor by Massey Ferguson
 1.png)
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 6026 MaxPro (Narrow Track) |
|
Vehicle Category |
4WD Tractor |
|
Overall Length |
2960 mm |
|
Overall Width |
930 mm |
|
Overall Height |
1290 mm |
|
Wheelbase |
1550 mm |
|
Total Weight |
980 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
23 L |
|
Max Speed |
23.3 km/h |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
MVS3L2-T3CC10 |
|
Cylinders |
3 |
|
Cubic Capacity |
1318 cc (1.31L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single diaphragm |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
9 Forward + 3 Reverse |
|
Power Range |
19.1 kW (26 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
12.7 cm x 30.48 cm (5 x 12) Front, 20.32 cm x 45.72 cm (8 x 18) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Two speed PTO |
|
PTO Speed |
540 RPM @ 2322 ERPM, 750 RPM @ 2450 ERPM |
|
Hydraulics Lifting Capacity |
739 kgf |
|
Three-point Linkage and Controls |
CAT-1, Draft with Auto Sense, position and response control |
|
Electricals |
12 V 65 Ah Battery, 12 V 65 A Alternator |
|
Accessories |
Push type pedals, fixed drawbar, SMART key, 7-pin trailer socket, front towing hook, mobile charger, linkage drawbar CAT 1N |
|
Optional Accessories |
Spool valve - single |
