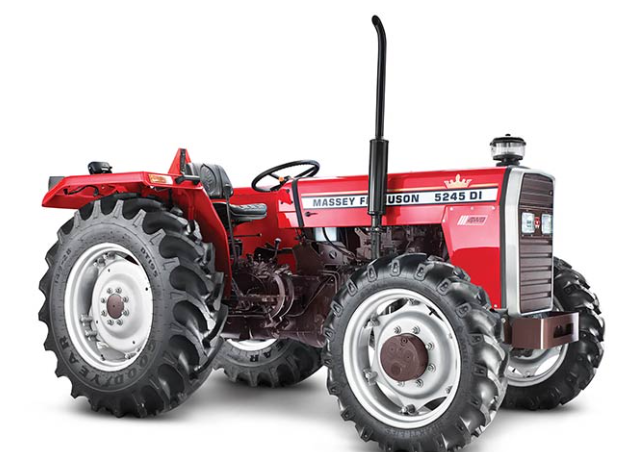

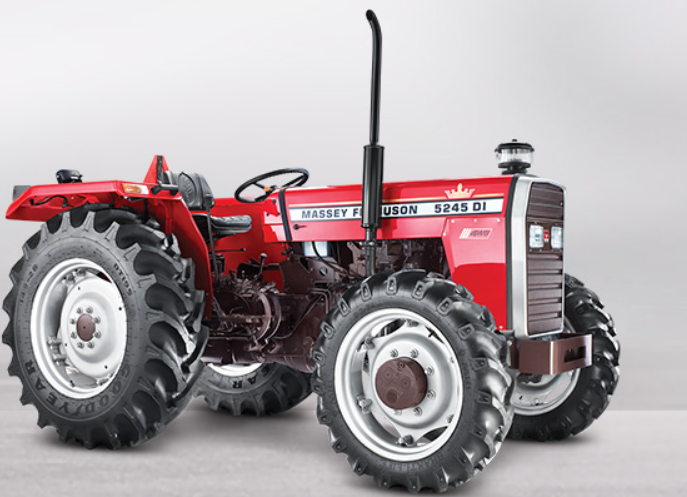

Massey Ferguson 5245 DI 4WD – 4WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 5245 DI 4WD |
|
Overall Length |
3,365 mm |
|
Overall Width |
1,735 mm |
|
Overall Height |
1,565 mm |
|
Wheelbase |
1,970 mm |
|
Total Weight |
2,450 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
47 L |
|
Max Speed |
34.8 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS SJ327 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2,700 cc (2.70L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
36.76 kW (50 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
34.8 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
21.08 cm x 60.96 cm (8.30 x 24) front, 37.85 cm x 71.12 cm (14.9 x 28) rear |
|
Optional Tyre Dimensions |
Higlug tyres |
Components & Features
|
Feature |
Details |
|
PTO Type |
GSPTO, six-splined shaft |
|
PTO Speed |
540 RPM @ 1790 ERPM |
|
Hydraulics Lifting Capacity |
1,700 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-1 and CAT-2 balls (Combi Ball) |
|
Electricals |
12 V 75 Ah Battery, 12 V 36 A Alternator |
|
Features |
Optional: Hilug tyres |
