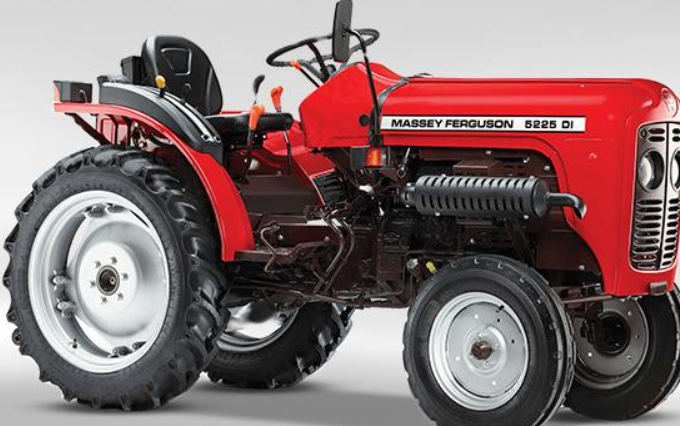

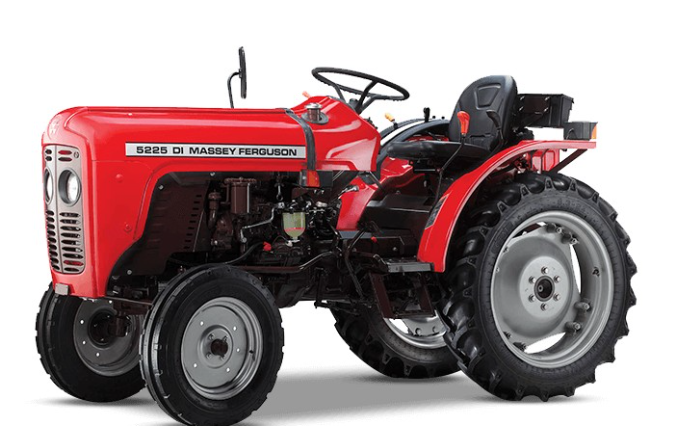

Massey Ferguson 5225 – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 5225 |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
2770 mm |
|
Overall Width |
1085 mm |
|
Wheelbase |
1578 mm |
|
Total Weight |
1115 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
27.5 litres |
|
Max Speed |
23.55 km/h |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS / Water cooled |
|
Cylinders |
2 |
|
Cubic Capacity |
1290 cc |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single dry friction plate (Diaphragm) |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Power Range |
17.6 kW (24 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Manual steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
13.33 cm x 35.56 cm (5.25 x 14) Front, 21.08 cm x 60.96 cm (8.3 x 24) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Two speed PTO |
|
PTO Speed |
540 RPM @ 2200 ERPM, 540 RPM Eco @ 1642 ERPM |
|
Hydraulics Lifting Capacity |
750 kgf |
|
Accessories |
Side shift, clutch safety switch, Multi track wheel adjustment, Maxx OIB, automatic depth and draft control (ADDC) |
