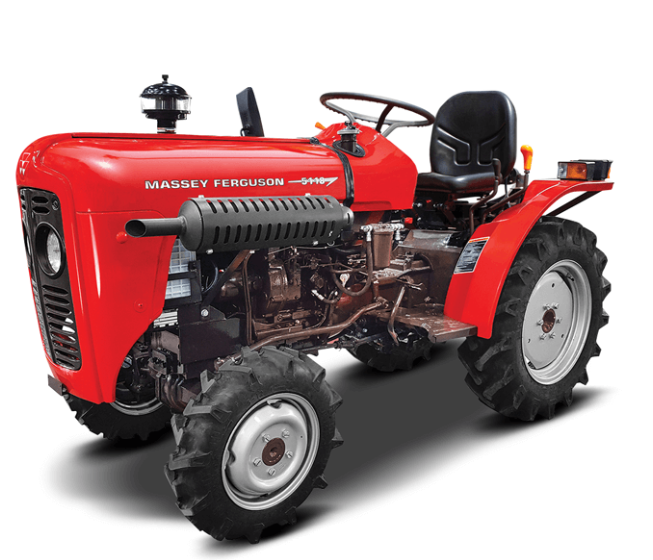

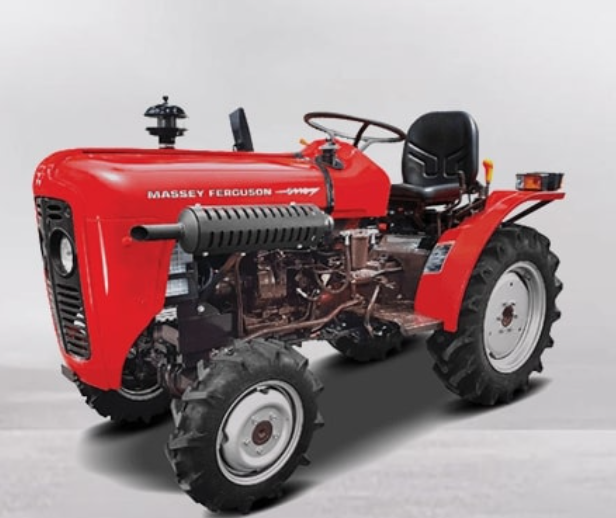

Massey Ferguson 5118 4WD – 4WD Mini Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 5118 4WD |
|
Overall Length |
2,610 mm |
|
Overall Width |
950 mm |
|
Overall Height |
1,310 mm |
|
Wheelbase |
1,420 mm |
|
Total Weight |
839 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Mini Tractor |
|
Fuel Tank Capacity |
28.5 L |
|
Max Speed |
21.68 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
182E15 |
|
Cylinders |
1 |
|
Cubic Capacity |
825 cc (0.82L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
<20 hp |
|
Clutch Type |
Single diaphragm |
|
Transmission Type |
Sliding mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
21.68 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Manual steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
12.7 cm x 30.48 cm (5 x 12) front, 20.32 cm x 45.72 cm (8 x 18) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, Two-speed PTO |
|
PTO Speed |
540 RPM @ 2180 ERPM and 540 RPM @ 1478 ERPM |
|
Hydraulics Lifting Capacity |
750 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-1 N |
|
Electricals |
12 V 75 Ah Battery, 12 V 35 A Alternator |
|
Features |
Lowest track width, push pedals, side shift, oil pipe kit, digital cluster |
