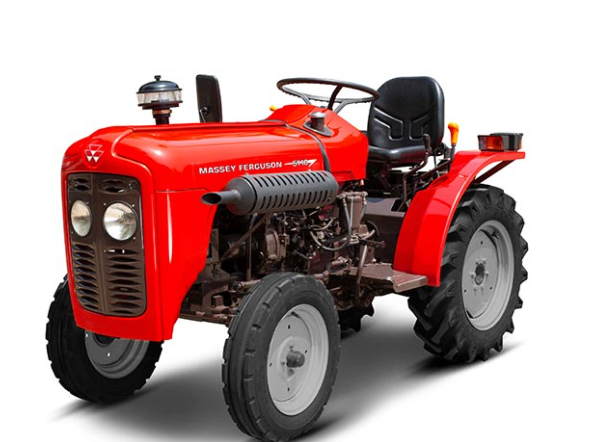

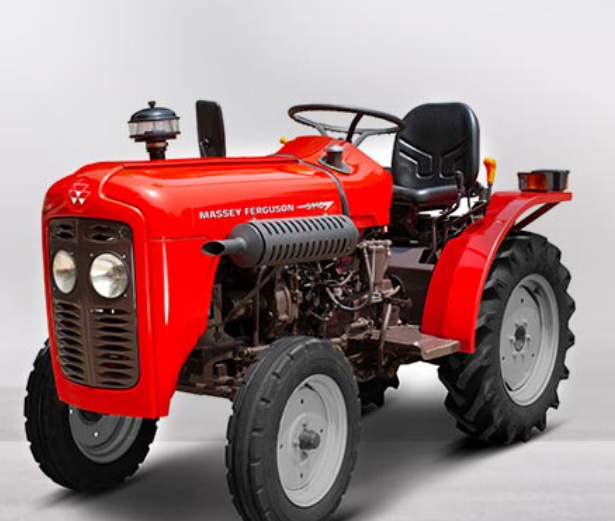

Massey Ferguson 5118 2WD – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 5118 2WD |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
2595 mm |
|
Overall Width |
950 mm |
|
Overall Height |
1300 mm |
|
Wheelbase |
1436 mm |
|
Total Weight |
790 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
28.5 L |
|
Max Speed |
21.68 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
182E15 |
|
Cylinders |
1 |
|
Cubic Capacity |
825 cc |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Single diaphragm |
|
Transmission Type |
Sliding mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Power Range |
<20 hp |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Manual steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
4.75 x 14 (12.06 cm x 35.56 cm) Front, 8 x 18 (20.32 cm x 45.72 cm) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, Two-speed PTO |
|
PTO Speed |
540 RPM @ 2180 ERPM, 540 E @ 1480 ERPM |
|
Hydraulics Lifting Capacity |
750 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, Links fitted with CAT-1N |
|
Electricals |
12 V 75 Ah Battery, 12 V 35 A Alternator |
|
Accessories |
Oil pipe kit, side shift, push pedal, lowest track width |
