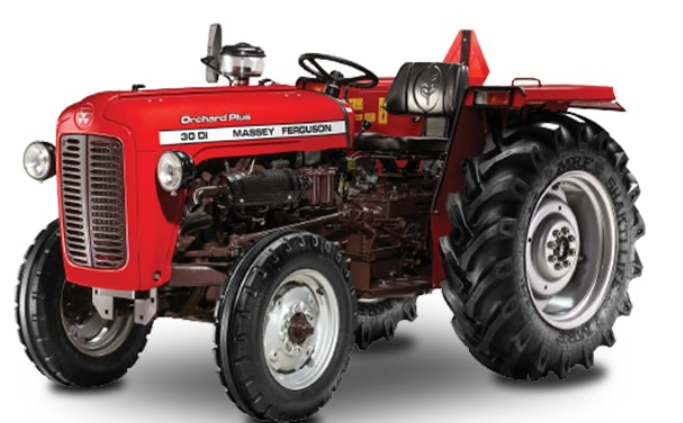

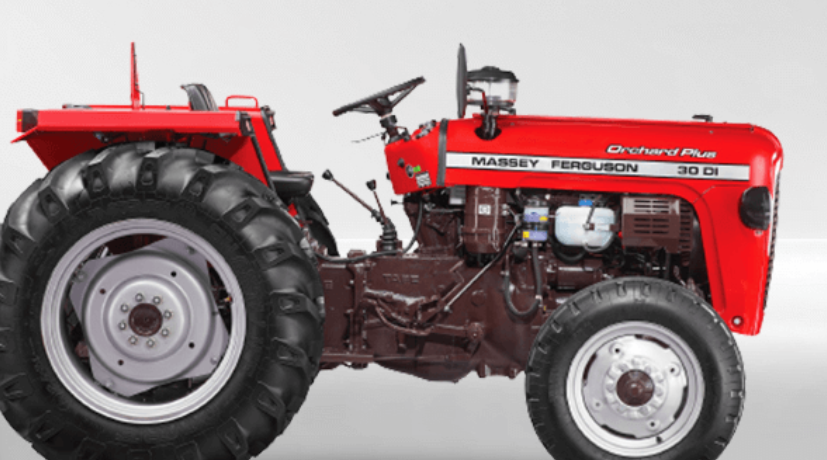

Massey Ferguson 30 DI Orchard Plus – 2WD Orchard Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 30 DI Orchard Plus |
|
Overall Length |
2,672 mm |
|
Overall Width |
1,420 mm |
|
Overall Height |
1,600 mm |
|
Total Weight |
1,520 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Orchard Tractor |
|
Fuel Tank Capacity |
25 L |
|
Max Speed |
26.88 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Cylinders |
2 |
|
Cubic Capacity |
1,670 cc |
|
Fuel Injection Pump |
Inline |
|
Power Range |
17.9 kW (30 hp) |
|
Clutch Type |
Dual |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Forward Speed |
26.88 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
13.97 cm x 40.64 cm (5.5 x 16) front, 31.49 cm x 61 cm (12.4 x 24) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live |
|
PTO Speed |
540 RPM |
|
Hydraulics Lifting Capacity |
1,350 kgf |
|
Features |
Chain stabilizer |
