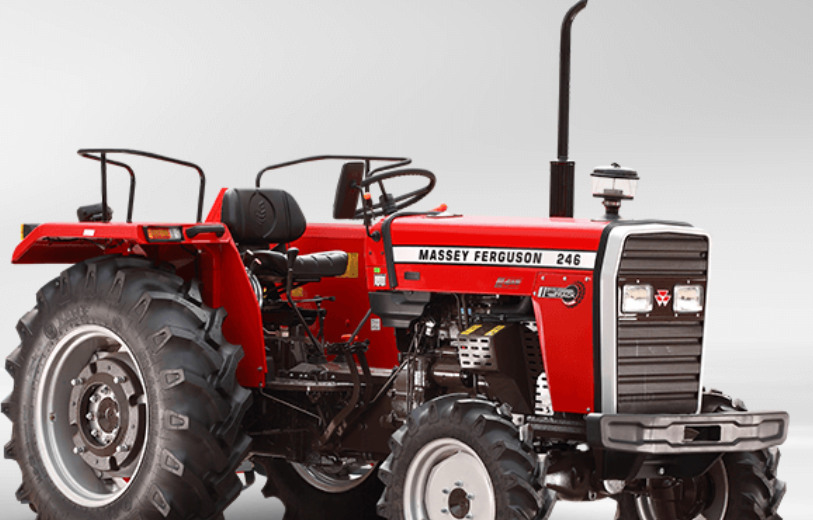

Massey Ferguson 246 DynaTrack 4WD – 4WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 246 DynaTrack 4WD |
|
Overall Length |
3,642 mm |
|
Overall Width |
1,784 mm |
|
Overall Height |
2,423 mm |
|
Wheelbase |
2,040 mm |
|
Total Weight |
2,140 kg |
|
Fuel Type |
Diesel |
|
Application |
4WD Agricultural Tractor |
|
Fuel Tank Capacity |
55 L |
|
Max Speed |
34.5 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS S325.5 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2,700 cc (2.70L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
33.82 kW (46 hp) |
|
Clutch Type |
Dual diaphragm |
|
Transmission Type |
Fully constant mesh |
|
Number of Speeds |
12 Forward + 12 Reverse |
|
Forward Speed |
34.5 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
20.32 cm x 45.72 cm (8.00 x 18) front, 37.85 cm x 71.12 cm (14.9 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Quadra PTO, six-splined shaft |
|
PTO Speed |
540 RPM @ 1789 ERPM |
|
Hydraulics Lifting Capacity |
2,050 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12 V 80 Ah Battery, 12 V 36 A Alternator |
|
Features |
SuperShuttleTM, adjustable hitch, stylish bumper, push type pedals, adjustable seat, oil pipe kit, telescopic stabilizer |
