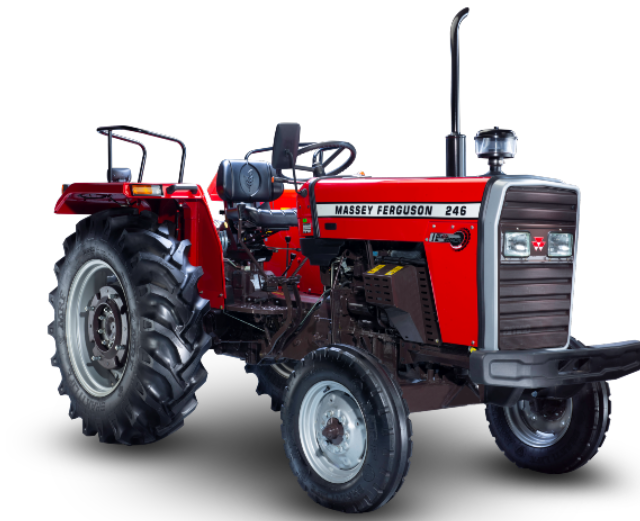

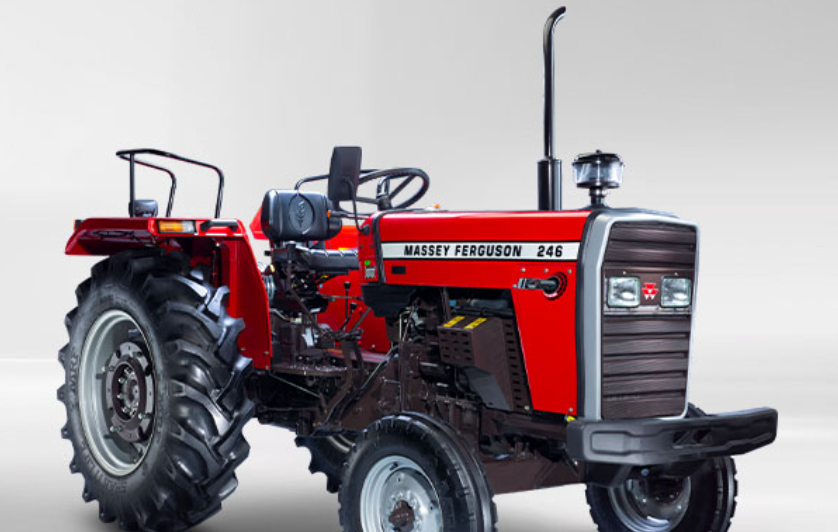

Massey Ferguson 246 Dynatrack 2WD – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 246 Dynatrack 2WD |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
3650 mm |
|
Overall Width |
1760 mm |
|
Overall Height |
2415 mm |
|
Wheelbase |
1935 mm (field applications), 2035 mm (haulage) |
|
Total Weight |
2010 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
55 L |
|
Max Speed |
34.5 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS S325.5 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2700 cc (2.7L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Dual diaphragm |
|
Transmission Type |
Fully constant mesh |
|
Number of Speeds |
12 Forward + 12 Reverse |
|
Power Range |
33.82 kW (46 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Manual steering / Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
6.00 x 16 (15.24 cm x 40.64 cm) Front, 14.9 x 28 (37.85 cm x 71.12 cm) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Quadra PTO, Six-splined shaft |
|
PTO Speed |
540 RPM @ 1789 ERPM |
|
Hydraulics Lifting Capacity |
2050 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, Links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12 V 80 Ah Battery, 12 V 36 A Alternator |
|
Accessories |
2-in-1 VersaTech front axle for extendable wheelbase, Super Shuttle, adjustable hitch, stylish bumper, push type pedals, adjustable seat, oil pipe kit, telescopic stabilizer |
