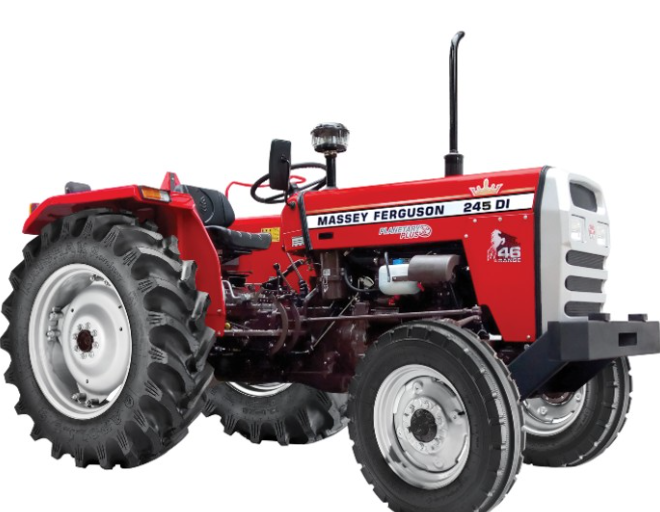

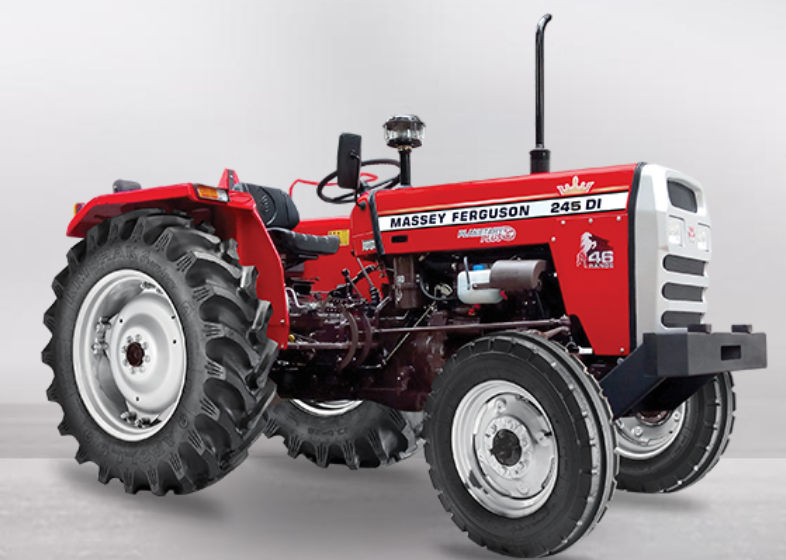

Massey Ferguson 245 DI - 46 HP – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Model |
Massey Ferguson 245 DI - 46 HP |
|
Overall Length |
3,340 mm |
|
Overall Width |
1,690 mm |
|
Overall Height |
2,261 mm |
|
Wheelbase |
1,785 mm |
|
Optional Wheelbase |
1,935 mm |
|
Total Weight |
1,880 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
55 L |
|
Max Speed |
32.4 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine |
SIMPSONS S325.5 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2,700 cc (2.7L) |
|
Fuel Injection Pump |
Inline |
|
Power Range |
33.82 kW (46 hp) |
|
Clutch Type |
Dual |
|
Transmission Type |
Partial constant mesh |
|
Number of Speeds |
8 Forward + 2 Reverse |
|
Optional Number of Speeds |
10 Forward + 2 Reverse |
|
Forward Speed |
32.4 kmph |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Multi disc oil immersed brakes |
|
Steering Type |
Manual steering / Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
15.24 cm x 40.64 cm (6.00 x 16) front, 34.54 cm x 71.12 cm (13.6 x 28) rear |
|
Optional Tyre Dimensions |
37.85 cm x 71.12 cm (14.9 x 28) rear |
Components & Features
|
Feature |
Details |
|
PTO Type |
Live, six-splined shaft |
|
Optional PTO Type |
Quadra PTO |
|
PTO Speed |
540 RPM @ 1500 ERPM |
|
Optional PTO Speed |
540 RPM @ 1906 ERPM |
|
Hydraulics Lifting Capacity |
1,700 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, links fitted with Cat 2 (Combi Ball) |
|
Electricals |
12 V 80 Ah Battery, 12 V 36 A Alternator |
|
Features |
Push type pedals, adjustable dual-tone seat |
