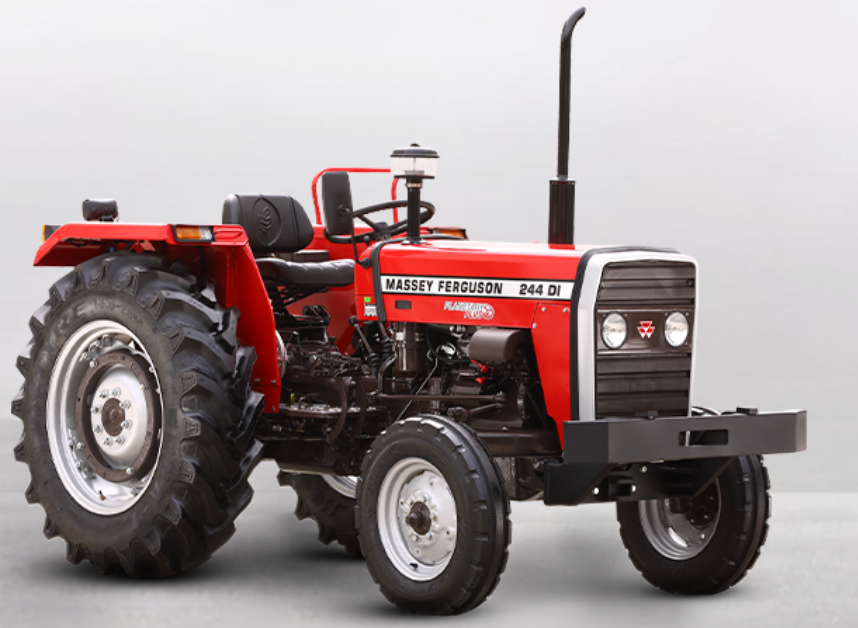

Massey Ferguson 244 DI PM – 2WD Agricultural Tractor by Massey Ferguson

Images:

1

2

Specifications

Specification	Details
Tractor Model	Massey Ferguson 244 DI PM
Vehicle Category	2WD Tractor
Wheelbase	1785 mm
Min Ground Clearance	345 mm
Fuel Type	Diesel
Application	2WD Agricultural Tractor

Frame & Drivetrain

Specification	Details
Engine Make / Type	TIII A S325.1-F2.6
Air Cleaner	Wet, 3-stage
Front Axle	Swept, fixed - 2WD
Clutch	Dual clutch
Transmission	8+2 PCM Center shift
Rear Drive	Direct drive
Power Range	32.35 kW (44 hp)

Suspension & Brakes

Specification	Details
Brakes	5D Oil immersed brakes (OIB)
Steering	Manual steering

Wheels & Tyres

Specification	Details
Front Tyres	6.00 x 16
Rear Tyres	13.6 x 28

Components & Features

Specification	Details
PTO	LPTO
Hydraulics	Oil immersed Ferguson Hydraulics System
Hydraulic Lift Capacity	1700 kgf
Pedals	Push type pedals
Accessories	Chain stabilizer, mobile charger, oil pipe kit, transport lock valve (TLV), check chain, front bumper, 7-pin trailer socket, 35 kg rear weights, push type pedals

* All the images are screenshots!
* Data has been taken from official website (Publicly Available)!
