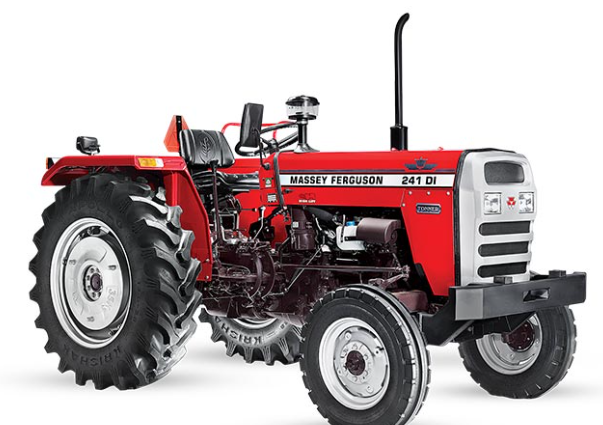

Massey Ferguson 241 DI Tonner – 2WD Agricultural Tractor by Massey Ferguson
Specifications
|
Specification |
Details |
|
Tractor Model |
Massey Ferguson 241 DI Tonner |
|
Vehicle Category |
2WD Tractor |
|
Overall Length |
3400 mm |
|
Overall Width |
1660 mm |
|
Overall Height |
2200 mm |
|
Wheelbase |
1935 mm |
|
Total Weight |
1875 kg |
|
Fuel Type |
Diesel |
|
Application |
2WD Agricultural Tractor |
|
Fuel Tank Capacity |
55 L |
|
Max Speed |
30.4 kmph |
Frame & Drivetrain
|
Specification |
Details |
|
Engine Make / Type |
SIMPSONS S325.1 TIII A |
|
Cylinders |
3 |
|
Cubic Capacity |
2500 cc (2.50L) |
|
Fuel Injection Pump |
Inline |
|
Clutch Type |
Dual |
|
Transmission Type |
Comfimesh |
|
Number of Speeds |
8 Forward + 2 Reverse (Option: 10 Forward + 2 Reverse) |
|
Power Range |
30.88 kW (42 hp) |
Suspension & Brakes
|
Specification |
Details |
|
Brake Type |
Sealed dry disc brakes / Multi disc oil immersed brakes |
|
Steering Type |
Manual steering / Power steering |
Wheels & Tyres
|
Specification |
Details |
|
Tyre Dimensions |
6.00 x 16 (15.24 cm x 40.64 cm) Front, 13.6 x 28 (34.54 cm x 71.12 cm) Rear |
Components & Features
|
Specification |
Details |
|
PTO Type |
Live, six splined shaft (Option: Quadra PTO) |
|
PTO Speed |
540 RPM @ 1500 ERPM (Option: 540 RPM @ 1906 ERPM) |
|
Hydraulics Lifting Capacity |
1700 kgf |
|
Three-point Linkage and Controls |
Draft, position and response control, Links fitted with CAT-1 (Combi Ball) |
|
Electricals |
12 V 75 Ah Battery, 12 V 36 A Alternator |
|
Accessories |
New knobs, long elevated hood, rear flat face with hitch rails |
